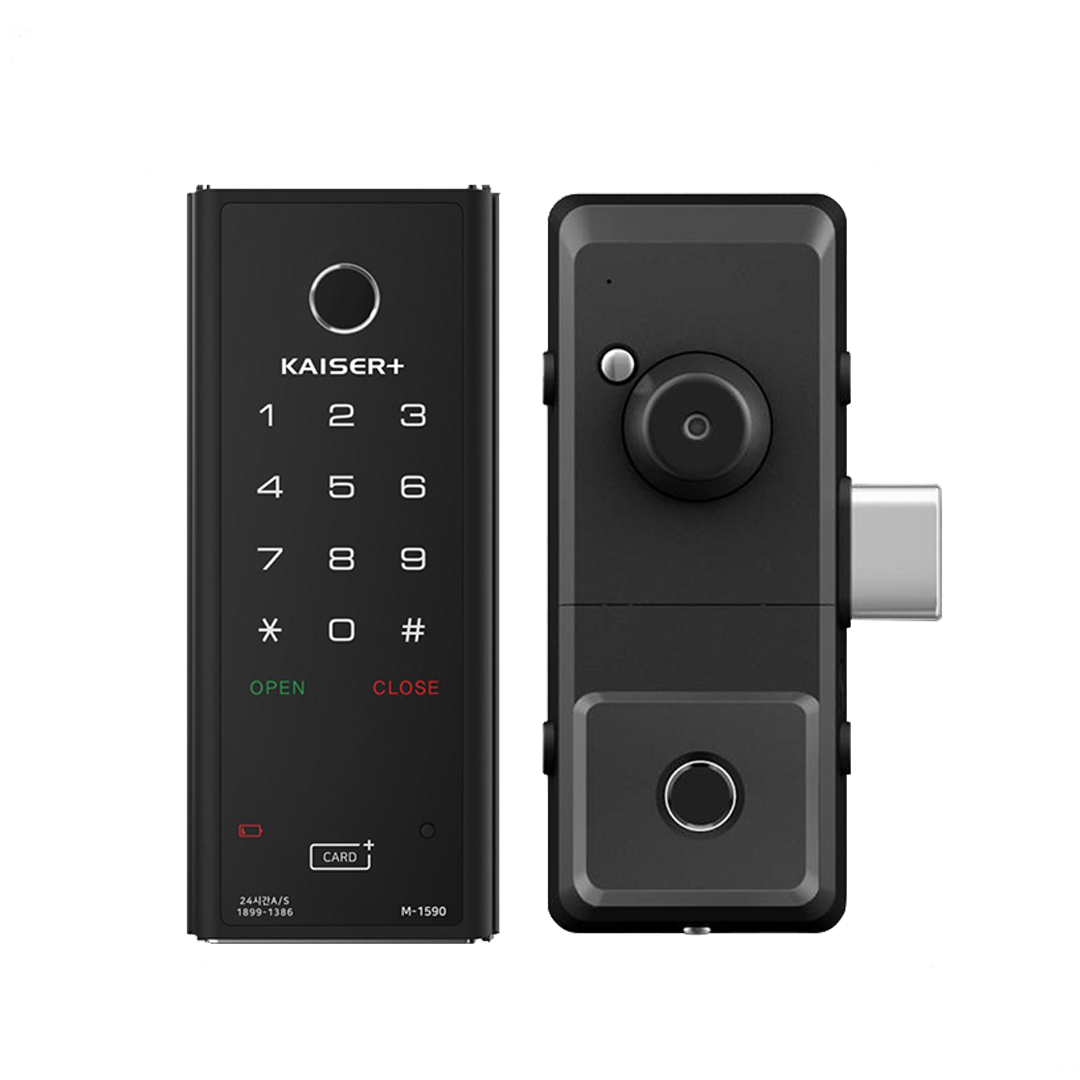

[Digital Dementia Doorlock] - 4way doorlock <M1593GNK>

📑 Product Information [MIDAS & KAISER+]

🔹 KAISER+ Product Lineup (HDB Gate Locks)

Common Options: In-body Metal Key, FREE GIFT Remote

• M1500GNK → PIN, RF Card
• M1192GNK → PIN, RF Card, Fingerprint
• M1491GNK → PIN, RF Card, Fingerprint
• M1590GNK → PIN, RF Card, Fingerprint
• M1593GNK → PIN, RF Card, Fingerprint, Dual In-body Fingerprint, SYNC Module
• M1593GNK/R (Right sliding from outside) → PIN, RF Card, Fingerprint, Dual In-body Fingerprint, SYNC Module, Outer-body Emergency Key
• M1593GNK/L (Left sliding from outside) → PIN, RF Card, Fingerprint, 2 Metal Emergency Keys, Outer-body Emergency Key

🔹 MIDAS Product Lineup

• MS5000FDG → PIN, RF Card, Fingerprint, In-body Metal Key, Dual Fingerprint, SYNC
• MS5000FTG → PIN, RF Card, Fingerprint, In-body Metal Key, Dual Fingerprint, SYNC, Smart Home App

🔹 BLE & Wi-Fi Shared Options

A. PhonePass+ (Korean App)

• Available Models: M1192GNK, M1491GNK
• Not Supported: M1590GNK, M1593GNK, M1593GNK/R, M1593GNK/L

1. BLE (Bluetooth)
2. BLE + Wi-Fi

B. Ewelink + 433Mhz Remote (Chinese App)

• Supported on all KAISER+ & MIDAS models

1. Wi-Fi Box
2. 433Mhz Portable Remote

🔹 BLE & Wi-Fi Feature Comparison

1. PhonePass+ (Korean BLE + Wi-Fi)
• Superior Security
• Functions: Temporary password issuance / Entry log check / Smartphone unlocking
2. Ewelink Wi-Fi Box (Chinese App)
• Functions: Smartphone unlocking / Multiple 433Mhz car-style remote registrations
• For entry log tracking → Add Door Sensor (sold separately)

🔹 Remote Control Guide

• Door Lock Remote
• Indoor: Uses 2 × AAA batteries
• Portable: Uses coin battery
• 433Mhz Portable Remote
• Similar in size to a car remote
• Requires Wi-Fi Box power connection

🔹 Built-in Wi-Fi Comparison

• Chinese Products: Built-in Wi-Fi → Rapid battery drain, often requires rechargeable batteries
• Our Products: External USB Wi-Fi Box → Minimal drain, operates with AA batteries

🔹 Product Specifications (SPECIFICATION)

• Product Name: M1500 Series (Vertical & Sliding Type)
• Distributor: KAISER PLUS Trading Co.
• Color: Body Black / Window Black
• Type: PIN, RF Card, Fingerprint, Emergency Key
• Applicable Models: M1500GNK, M1192GNK, M1491GNK, M1590GNK, M1593GNK, M1593GNK/R, M1593GNK/L, MS5000FDT
• RF Card Key: Touch authentication function
• Registered RF Cards: Up to 50
• Fingerprint Capacity: Up to 100
• Metal Emergency Key: Master key option available for bulk orders
• Operating Temperature: -15℃ ~ 55℃

Dimensions (Approx.)

• [KAISER+]
• Outer Body: 70 × 163 × 18 mm
• Inner Body: 70 × 167 × 38 mm
• [MIDAS MS5000]
• Outer Body: 74 × 176 × 20 mm
• Inner Body: 74 × 176 × 38 mm

Material: Flame-retardant ABS, GI (Steel)
Components: Outer Body, Inner Body, Bolt Set, User Manual, Installation Guide, 2 RF Cards
Box Size & Weight: 265 × 212 × 95 mm / 1.1–1.4 kg
Battery: 4 × AA batteries (not included due to flight regulations)

🔹 Model Summary (Final)

📊 Product Lineup Comparison [KAISER+ vs MIDAS]

🔹 Free Warranty Policy

• Standard: 2-Year Free Warranty (A/S)
• Within 3 months → Seller covers round-trip shipping, replacement provided
• 3 months ~ 1 year → Customer pays one-way shipping (to Korea), seller covers return shipping after repair
• 1 year ~ 2 years → Customer pays round-trip shipping, free repair provided
• Even if a new product is received, the original unit must be kept for use during the warranty period

📦 Return & After-Sales (A/S) Policy

1. Before Installation

• Check the contents immediately upon receipt
• Connect wires and insert batteries to test operation before installation
• 90% of customer claims occur due to installation issues (wire damage, bending, pin damage, etc.) → Please handle carefully
• If any issue is found, record a video and contact the seller immediately

2. Return Policy

• Eligible within 30 days of receipt
• Conditions: Same condition as received / Unused / Tags & packaging intact / Receipt or proof of purchase required
• Procedure: Email kaiserplus.co@gmail.com → Product inspection → Refund issued if defect confirmed

3. Non-Returnable / Notes

• BLE / Wi-Fi Functions
• Recognition may vary depending on country/phone environment → Refund possible at customer’s expense
• However, BLE/Wi-Fi malfunction cannot be the sole reason for full lock return
• Remote Control
• Considered consumable, 3-month free warranty
• After 3 months → Replacement available for USD 30
• Remote issues cannot justify full lock return

4. After-Sales Service (A/S)

• Within 3 months → Seller covers round-trip shipping → Repair or replacement unit
• 3 months ~ 1 year → Customer pays outbound shipping → Repair, seller covers return shipping
• Within 1 year, if lock cannot be opened → Replacement provided (except models with emergency key)
• 1 ~ 2 years → Customer pays round-trip shipping → Free repair provided
• Exclusions: Customer negligence or physical damage (video proof required for confirmation)
