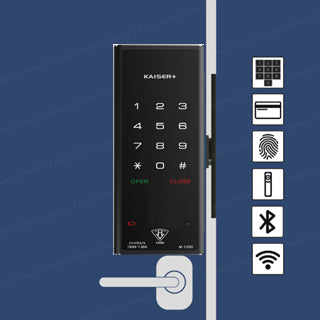

📑 Product Information [MIDAS & KAISER+] M1500TNK

Product Overview

This digital door lock is compatible with both sliding doors and swing doors.

It can also be installed on frame glass doors.

It provides both convenience and high-level security.

Emergency Key Guide

Use in case of battery depletion or mechanical failure.

Applicable models: M1590TKK/R, M1590TKK/L

Please familiarize yourself with the emergency key usage beforehand.

Accessories must be purchased separately in the Accessories section.

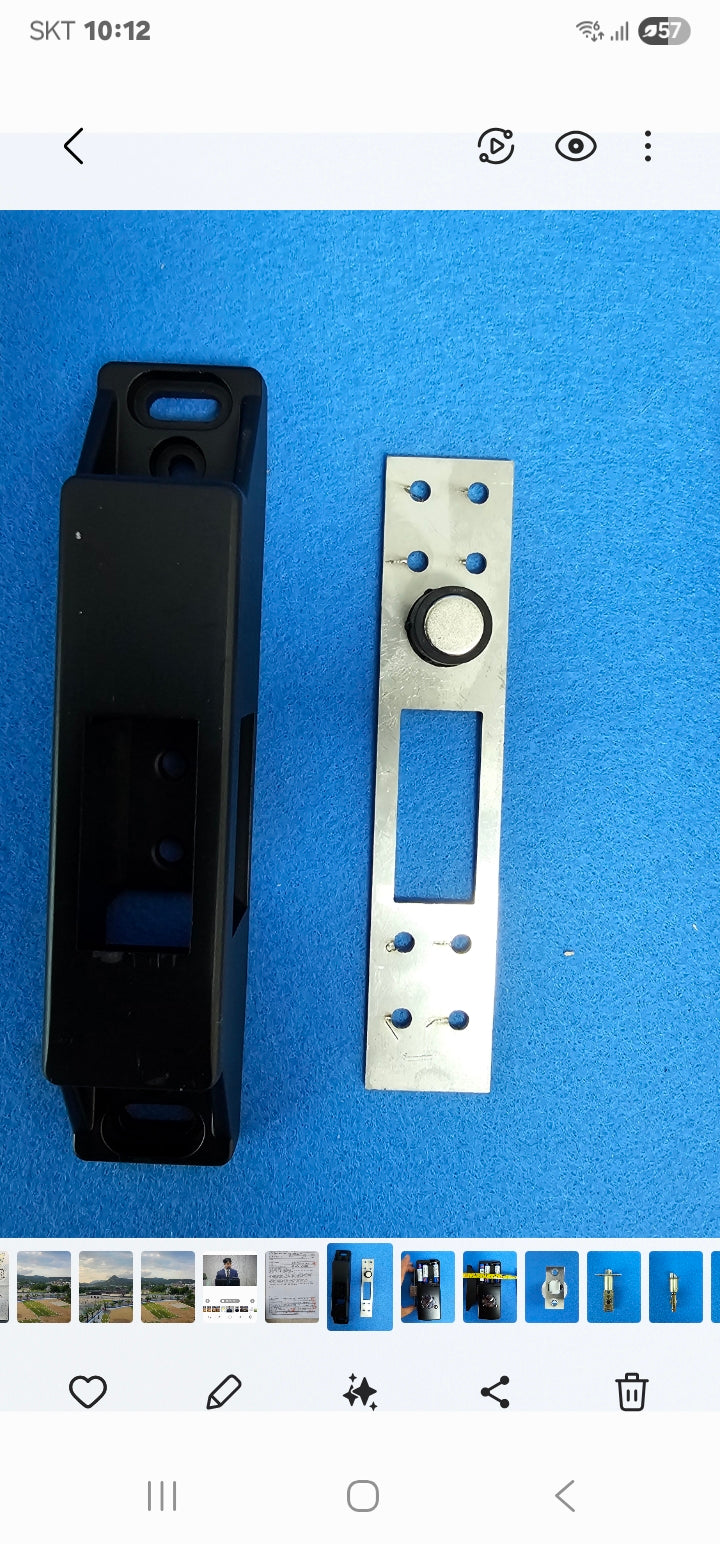

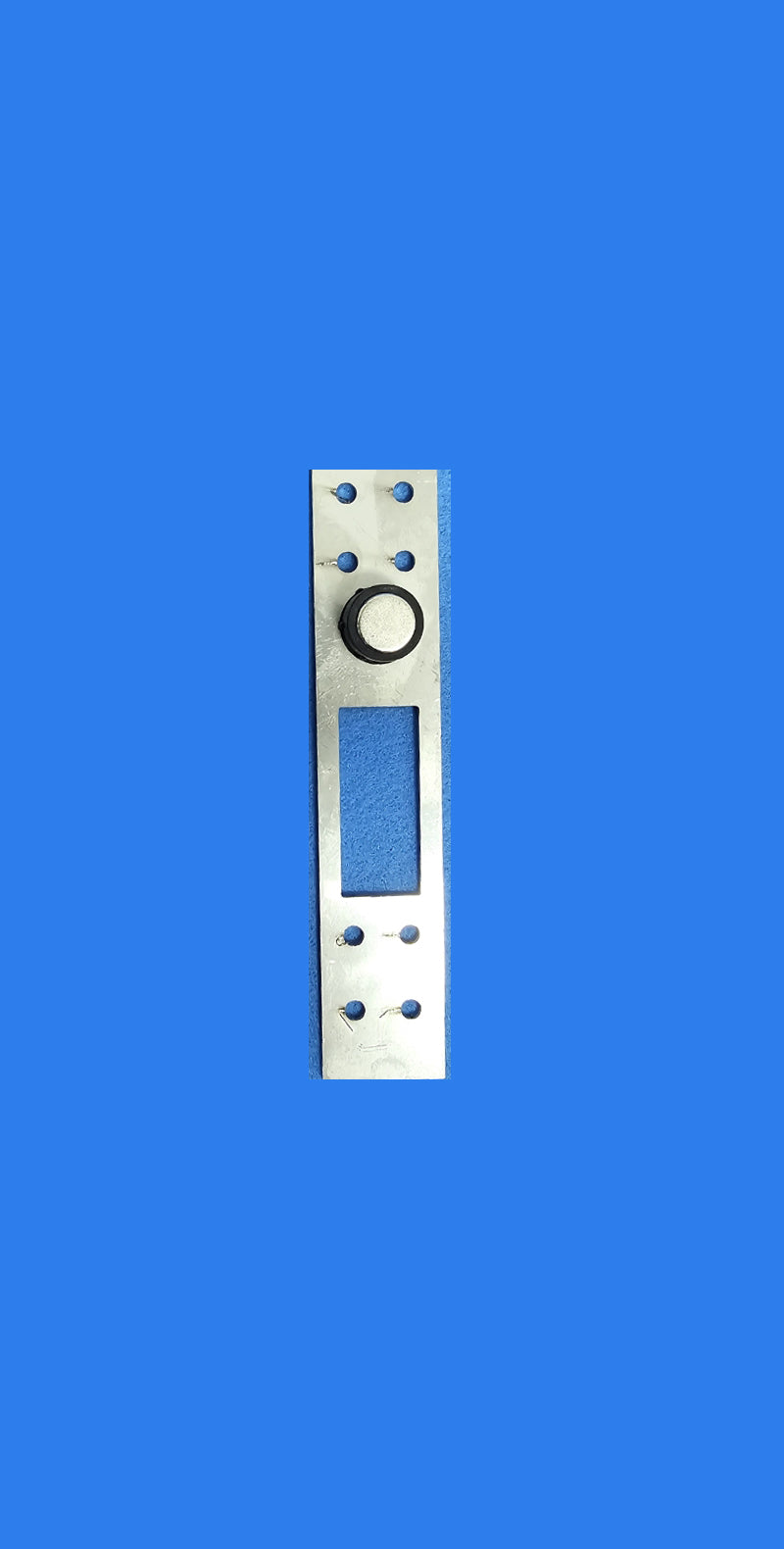

👉 Customers who require the KAISER+ Slim Strike (Slim Holder) should purchase it separately under Accessories.

KAISER+ Product Lineup

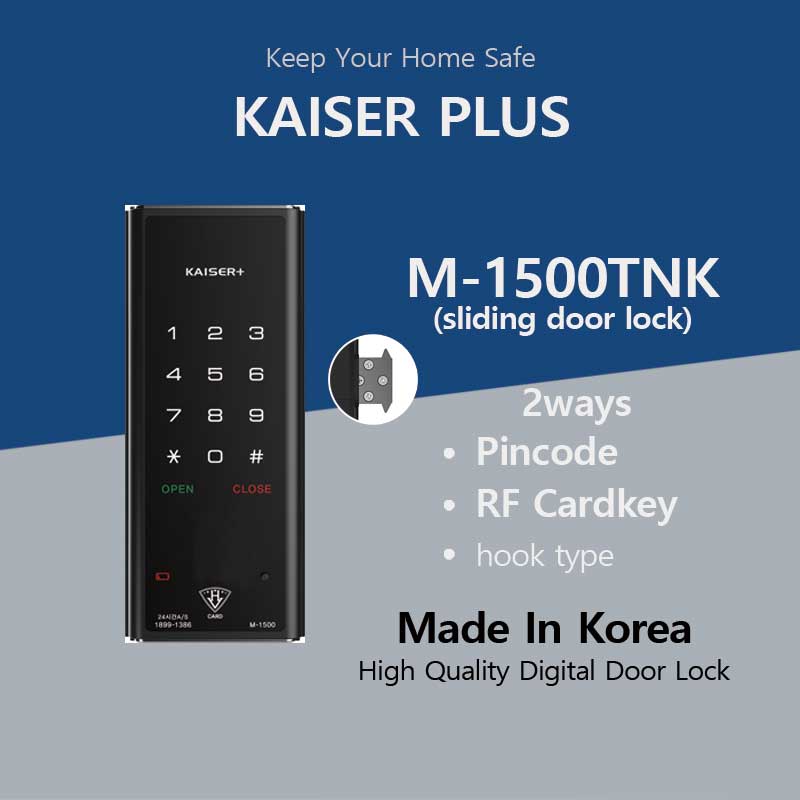

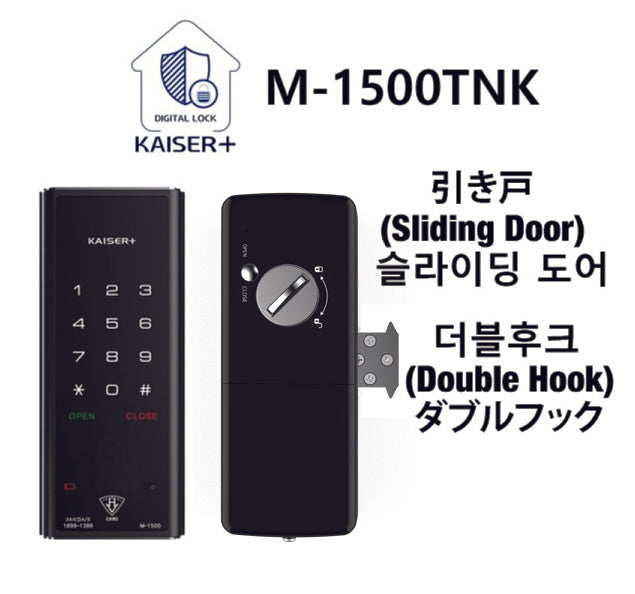

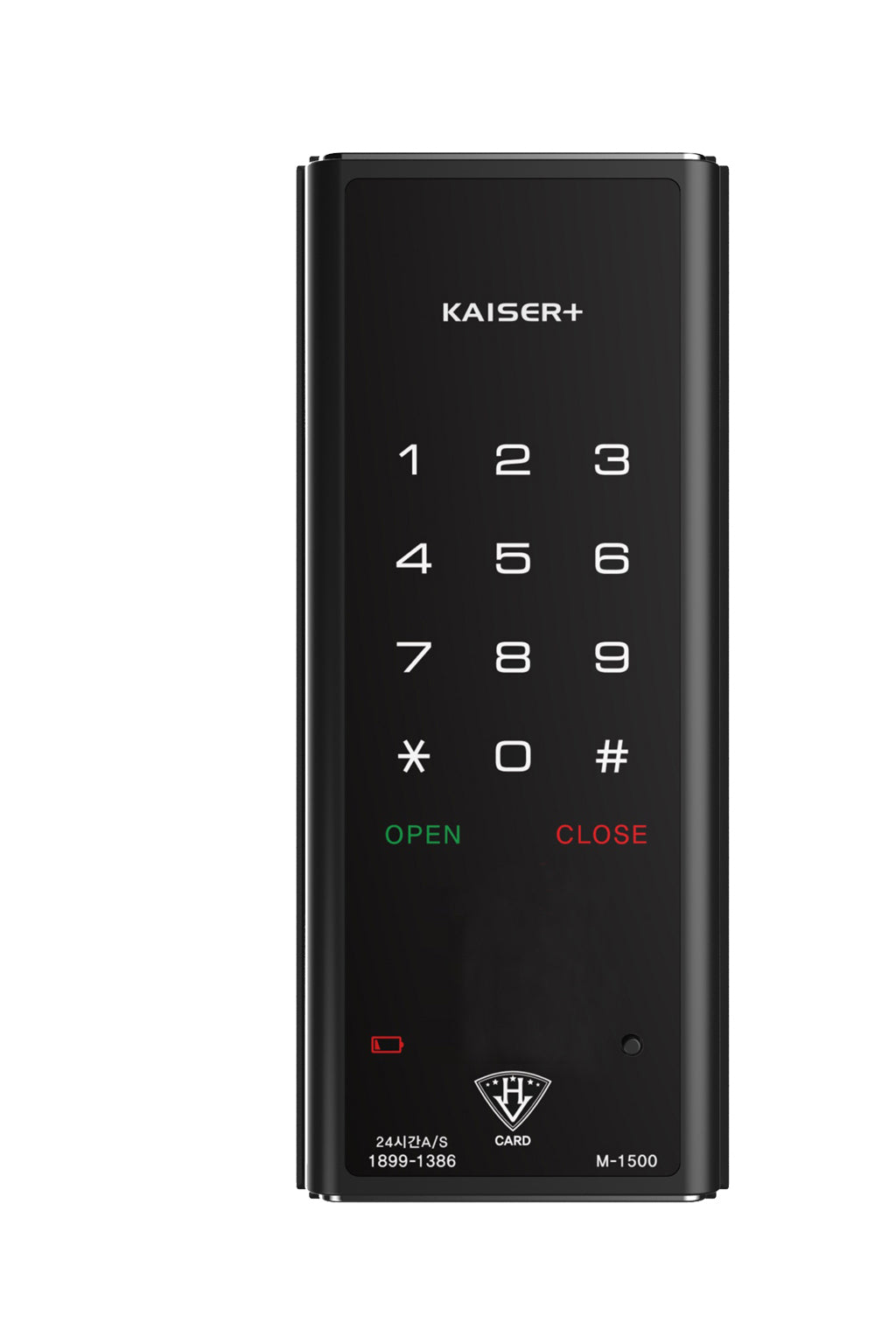

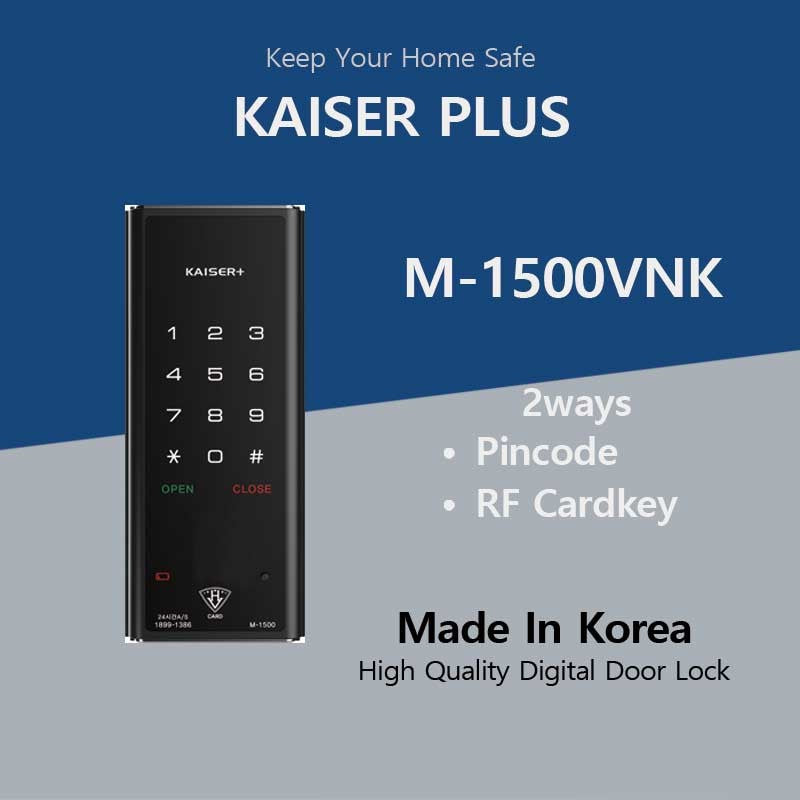

M1500TNK → PIN code, RF Card

M1590TNK → PIN code, RF Card, Fingerprint

M1590TKK/R (Right sliding from outside) → PIN code, RF Card, Fingerprint, 2 Metal Emergency Keys

M1590TKK/L (Left sliding from outside) → PIN code, RF Card, Fingerprint, 2 Metal Emergency Keys

MIDAS Product Lineup

MS5000FDT → PIN code, RF Card, Fingerprint

BLE & Wi-Fi Shared Options

A. PhonePass+ (Korean App)

   - Remote Control

   - BLE (Bluetooth)

   - BLE + Wi-Fi

B. Ewelink + 433Mhz Remote (Chinese App)

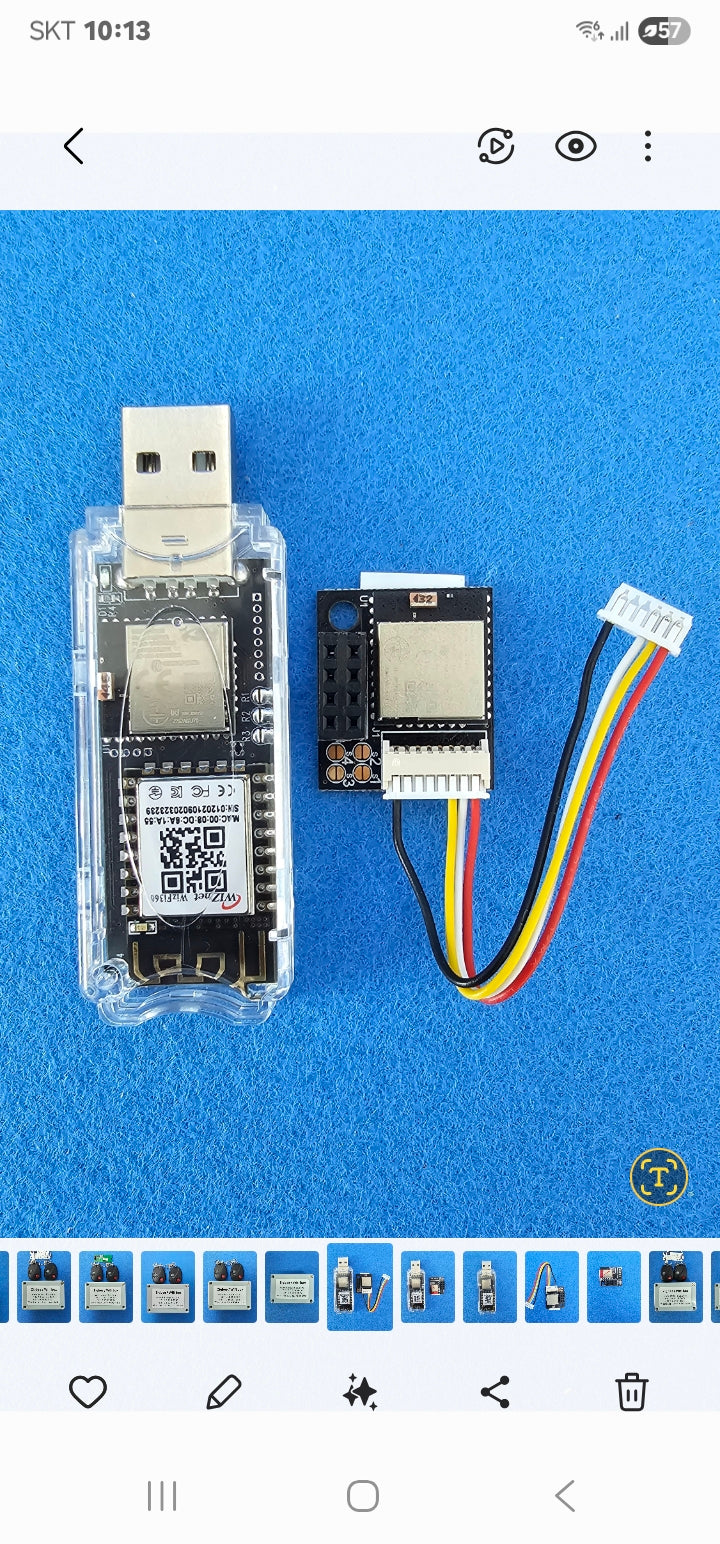

   - Wi-Fi Box

   - 433Mhz Portable Remote

BLE & Wi-Fi Function Comparison

1. PhonePass+ (Korean BLE + Wi-Fi)

   - Higher security

   - Features: Temporary PIN issuance / Entry log tracking / Smartphone unlocking

2. Ewelink Wi-Fi Box (Chinese App)

   - Features: Smartphone unlocking / Register multiple 433Mhz car-type remotes

   - For entry log tracking → optional door sensor required

👉 KAISER+: Supports both Korean & Chinese apps

👉 MIDAS: Supports only Chinese app

Remote Control Guide

Door Lock Remote

   - Indoor use: Powered by 2 × AAA batteries

   - Portable: Coin cell battery

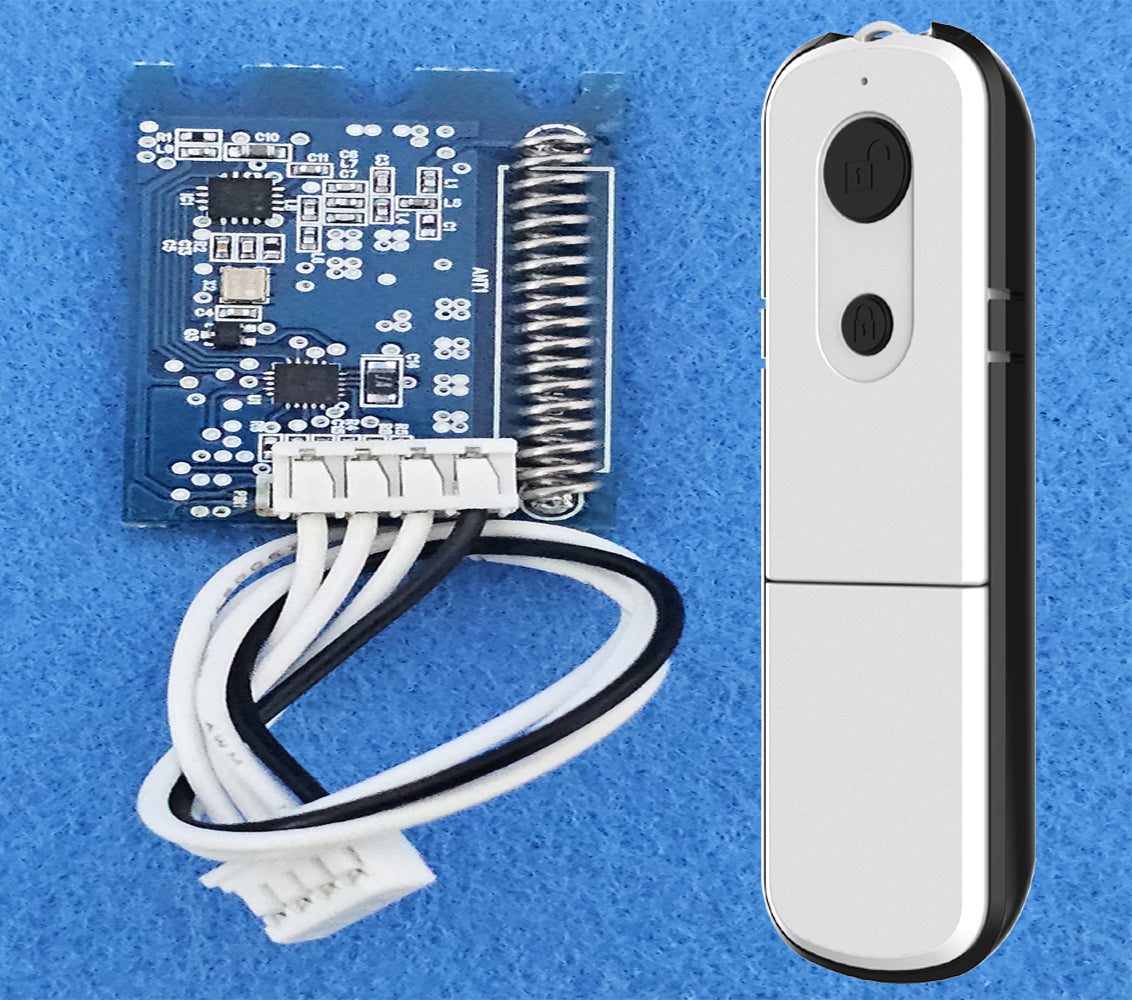

433Mhz Portable Remote

   - Car-style size

   - Requires Wi-Fi Box power connection

Built-in Wi-Fi Comparison

Chinese Products: Built-in Wi-Fi → high battery consumption, requires rechargeable battery

Our Products: External USB Wi-Fi Box → minimal battery consumption, powered by AA batteries

Product Specifications

Product Name: M1500 Series (Vertical & Sliding Type)

Distributor: KAISER PLUS Trading Co.

Color: Black body / Black window

Type: PIN, RF Card, Fingerprint, Emergency Key

Applicable Models: M1500TNK, M1590TNK, M1590TKK/R, M1590TKK/L, MS5000FDT

RF Card Key: Touch authentication

RF Card Registration: Up to 50 cards

Fingerprint Registration: Up to 100 users

Emergency Key: 2 Metal Keys (Master key option available for bulk orders)

Operating Temperature: –15℃ to 55℃

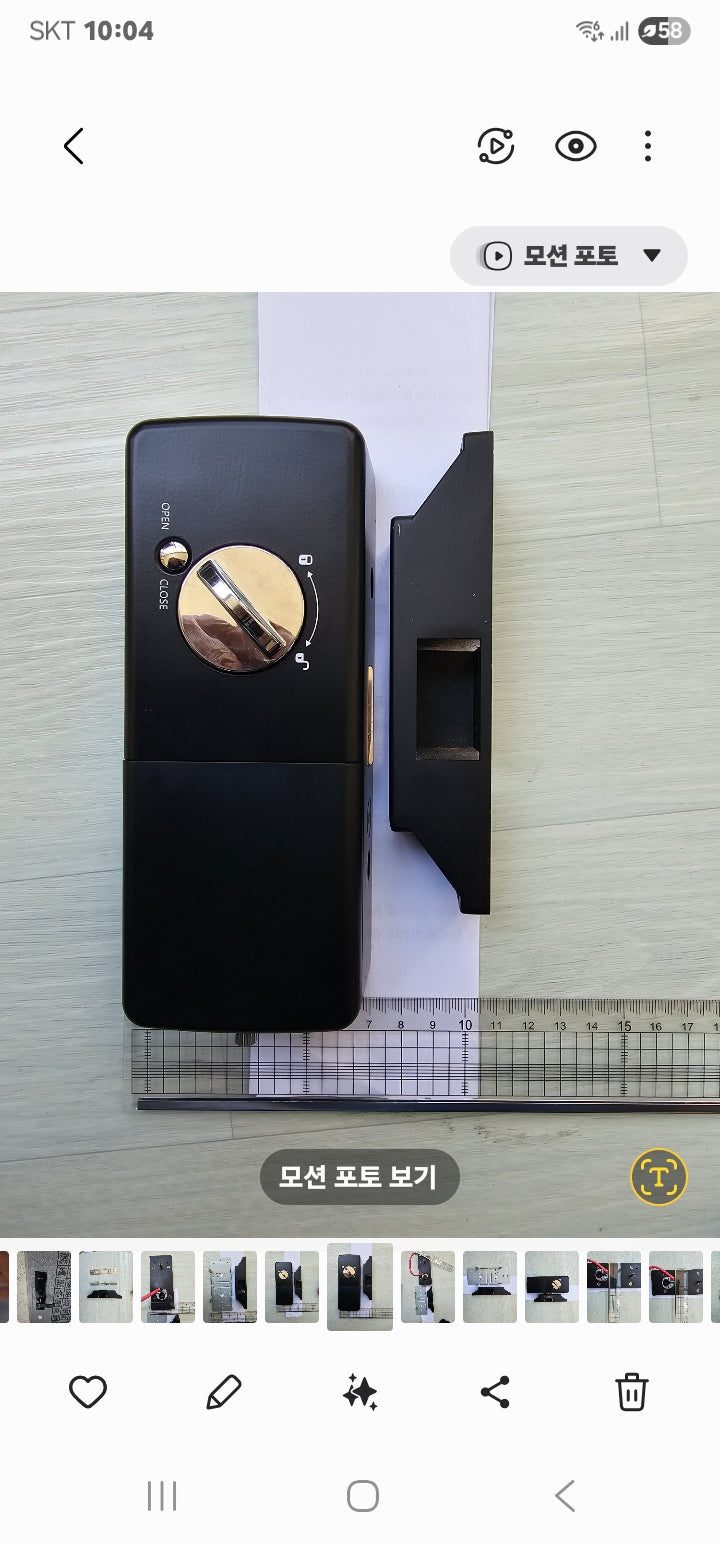

Dimensions (± tolerance)

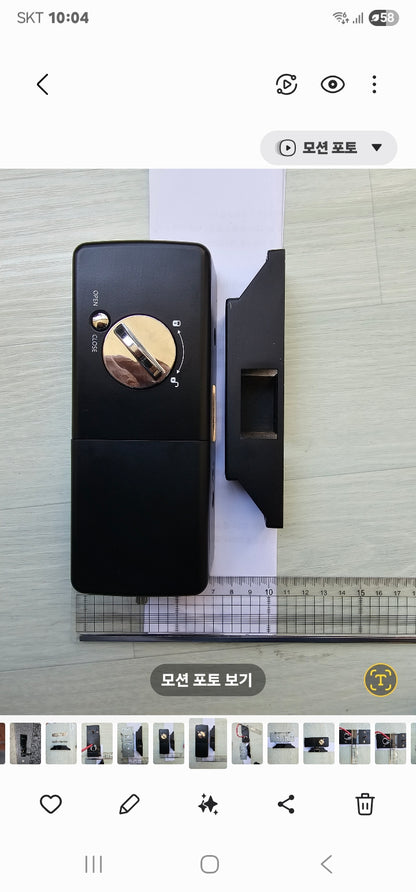

[KAISER+] Outer Body: 70 × 163 × 18 mm / Inner Body: 70 × 167 × 38 mm

[MIDAS MS5000] Outer Body: 74 × 176 × 20 mm / Inner Body: 74 × 176 × 38 mm

Material: Flame-retardant ABS, GI Steel

Package Contents: Outer Body, Inner Body, Bolt Set, User Manual, Installation Guide, 2 RF Cards

Box Size & Weight: 265 × 212 × 95 mm / 1.1–1.4 kg

Battery: 4 × AA batteries (not included due to air shipment regulations)

💡 Battery Life Guide

   - Varies depending on usage (opening frequency, remote control, Wi-Fi, sync with main door lock, humidity, temperature, battery type)

   - If depleted within 2 months → rechargeable batteries recommended

   - Latest door locks consume more power due to enhanced performance

Model Summary (Final)

✅ M1500TNK: No Fingerprint / No Emergency Key

✅ M1590TNK: Fingerprint ⭕ / No Emergency Key

✅ M1590TKK/R: Fingerprint ⭕ / Emergency Key ⭕ (Right Sliding)

✅ M1590TKK/L: Fingerprint ⭕ / Emergency Key ⭕ (Left Sliding)

✅ MS5000FDT (MIDAS): Fingerprint ⭕ / No Emergency Key
