📑 Product Information [MIDAS & KAISER+]

🔹 KAISER+ Product Lineup (HDB Gate Locks)

Common Features: In-body Metal Key (Remote optional)
Shared Options: Remote Control, Wi-Fi Box, BLE + Wi-Fi

• M1500GNK → PIN, RF Card

• M1192GNK → PIN, RF Card, Fingerprint

• M1491GNK → PIN, RF Card, Fingerprint

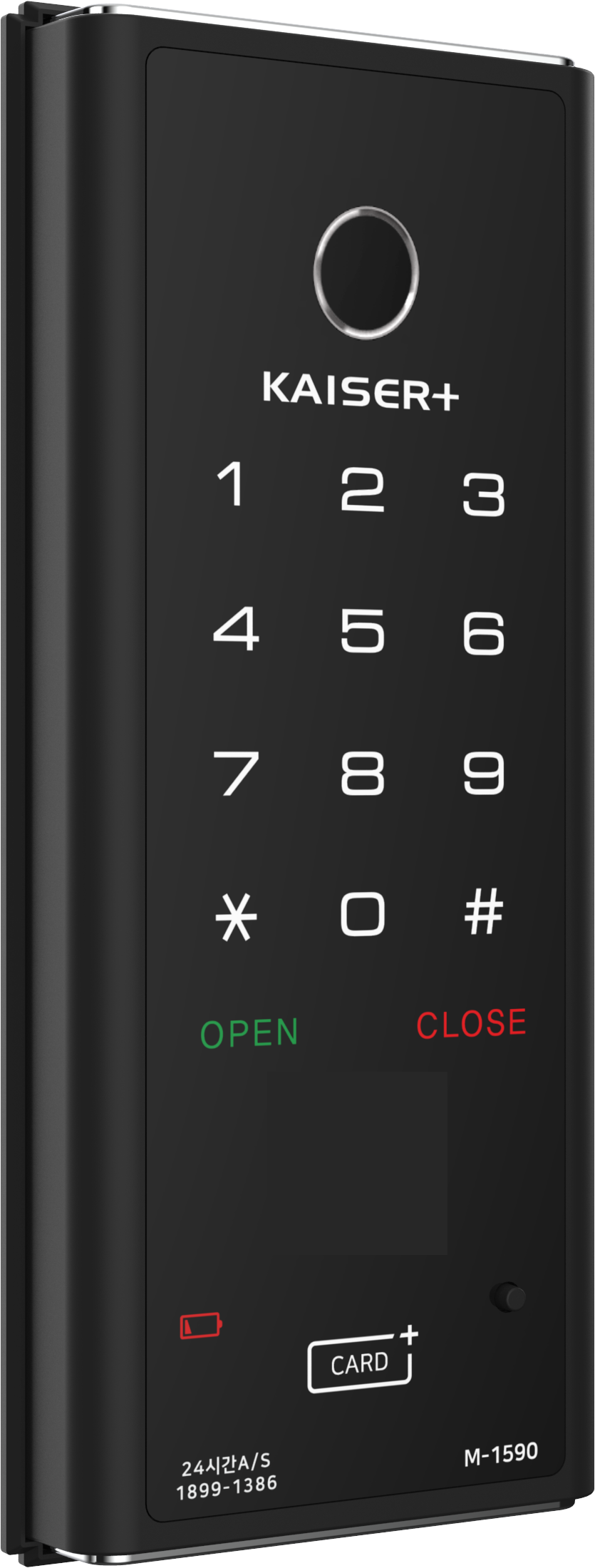

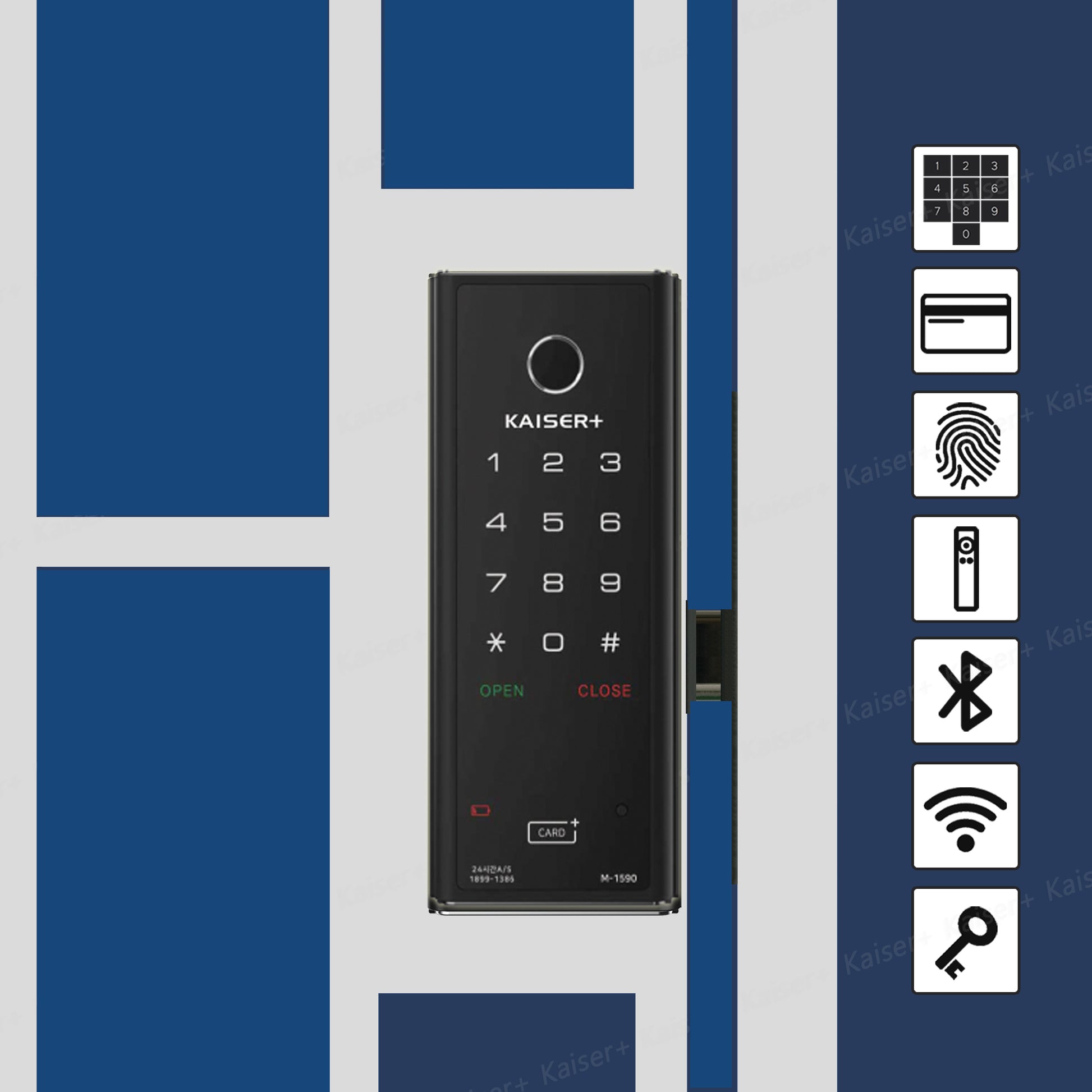

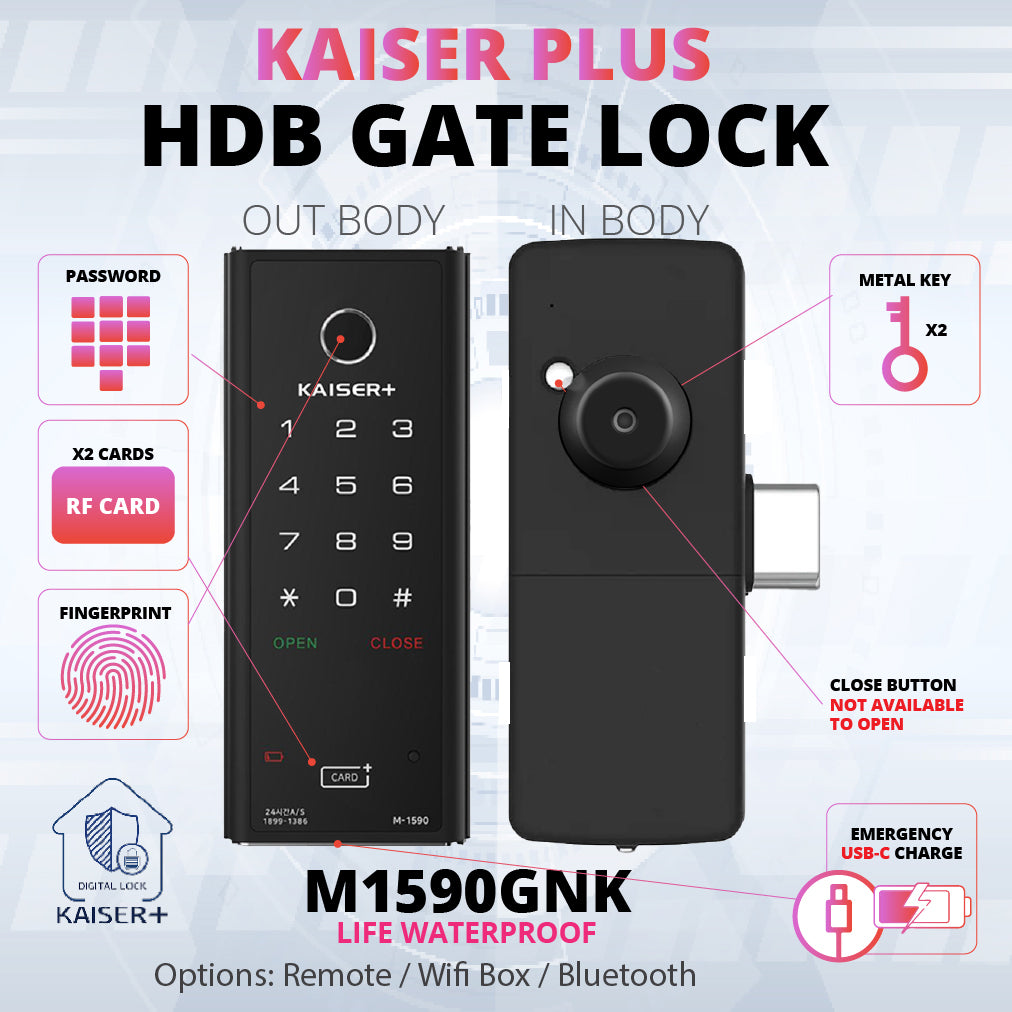

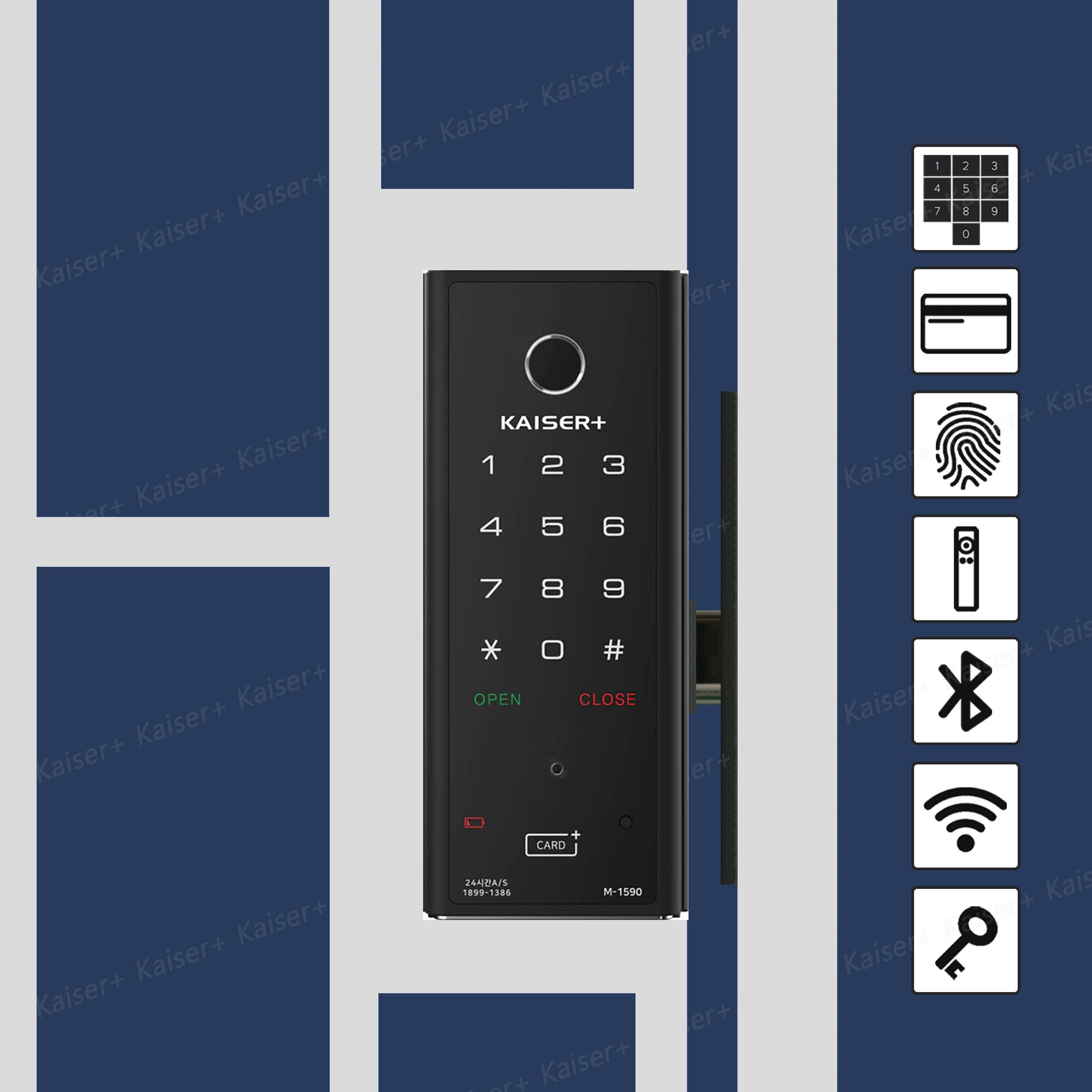

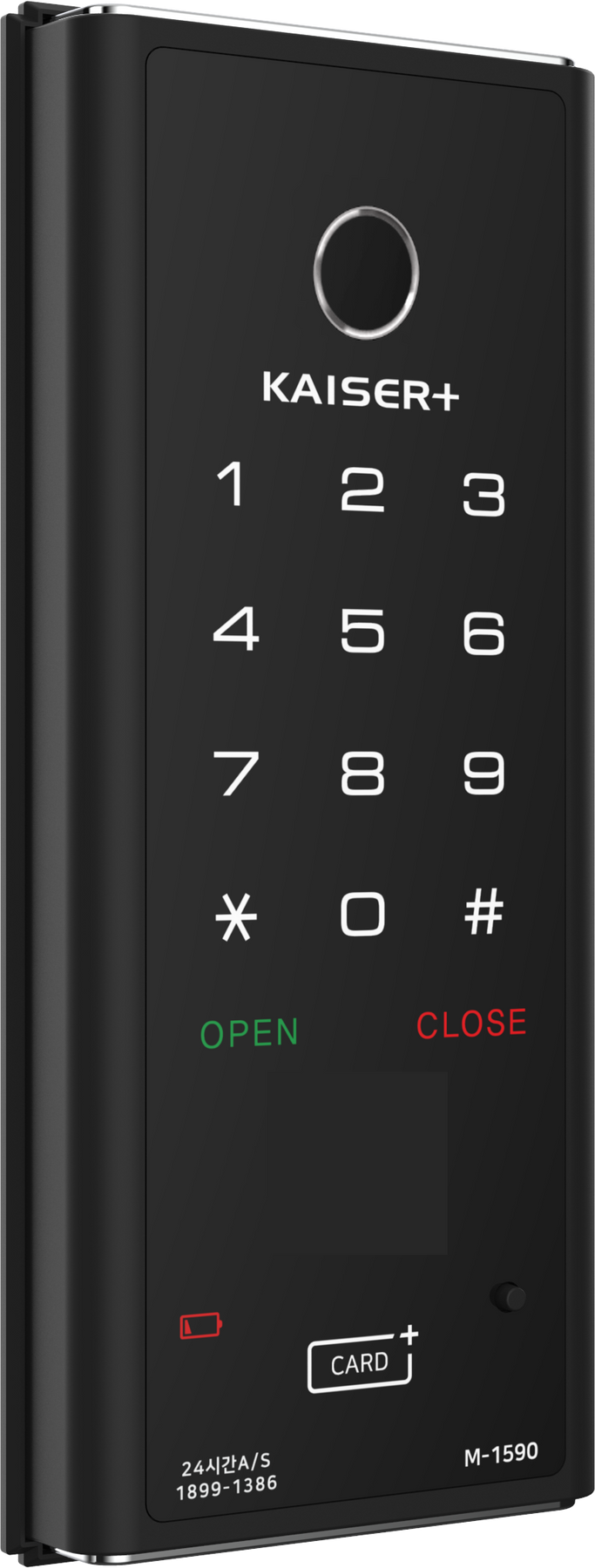

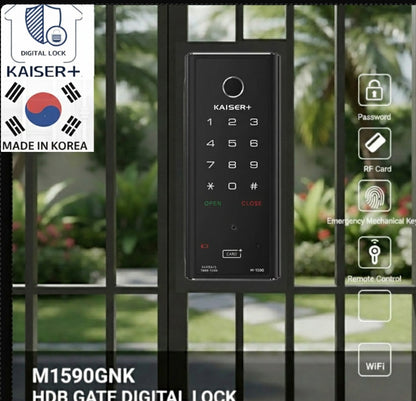

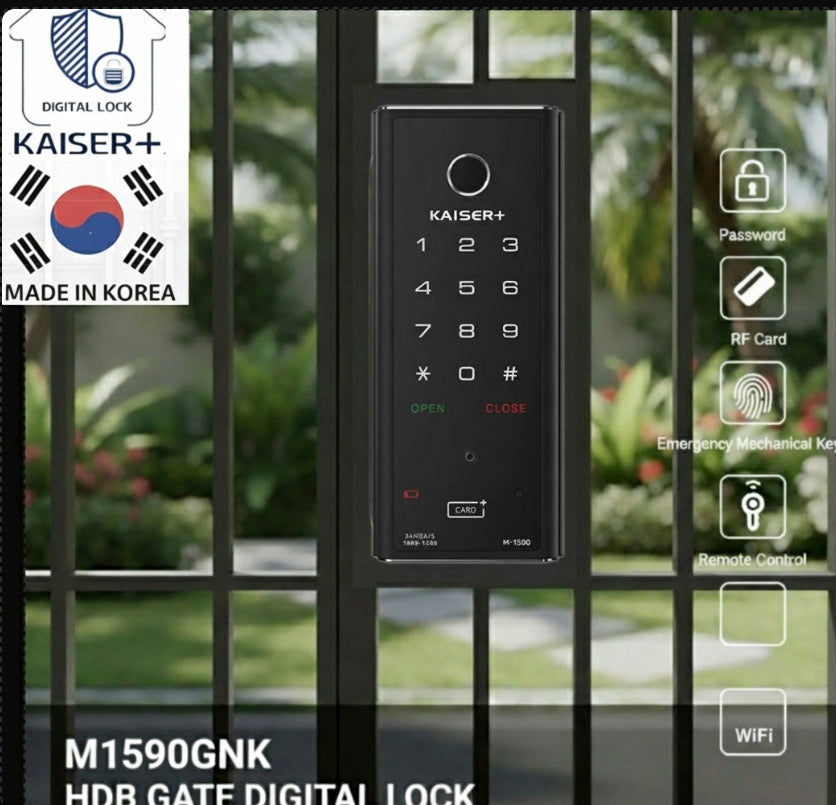

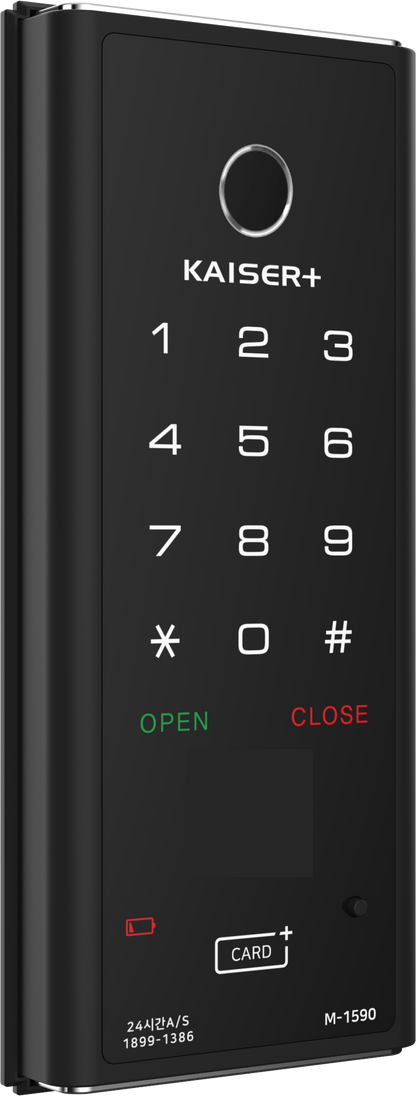

• M1590GNK → PIN, RF Card, Fingerprint

• M1593GNK → PIN, RF Card, Fingerprint, Dual In-body Fingerprint, SYNC Module

• M1593GNK/R (Right sliding from outside) → PIN, RF Card, Fingerprint, Dual In-body Fingerprint, SYNC Module, Outer-body Emergency Key

• M1593GNK/L (Left sliding from outside) → PIN, RF Card, Fingerprint, 2 Metal Emergency Keys, Outer-body Emergency Key

🔹 MIDAS Product Lineup

• MS5000FDG → PIN, RF Card, Fingerprint, In-body Metal Key, Dual Fingerprint, SYNC

• MS5000FTG → PIN, RF Card, Fingerprint, In-body Metal Key, Dual Fingerprint, SYNC, Smart Home App

🔹 BLE & Wi-Fi Shared Options

A. PhonePass+ (Korean App)

• Supported Models: M1192GNK, M1491GNK

• Not Supported: M1590GNK, M1593GNK, M1593GNK/R, M1593GNK/L

• Options: BLE (Bluetooth), BLE + Wi-Fi

B. Ewelink + 433Mhz Remote (Chinese App)

• Supported on all KAISER+ & MIDAS models

• Options: Wi-Fi Box, 433Mhz Portable Remote

🔹 BLE & Wi-Fi Feature Comparison

• PhonePass+ (Korean BLE + Wi-Fi)

  • Superior security

  • Functions: Temporary password issuance / Entry log check / Smartphone unlocking

• Ewelink Wi-Fi Box (Chinese App)

  • Functions: Smartphone unlocking / Multiple 433Mhz car-style remote registrations

  • For entry log tracking → Add a Door Sensor (sold separately)

🔹 Remote Control Guide

• Door Lock Remote

  • Indoor: Uses 2 × AAA batteries

  • Portable: Uses coin battery

• 433Mhz Portable Remote

  • Similar in size to a car key remote

  • Requires Wi-Fi Box power connection

🔹 Built-in Wi-Fi Comparison

• Chinese Products: Built-in Wi-Fi → Rapid battery drain, requires rechargeable batteries

• Our Products: External USB Wi-Fi Box → Minimal drain, runs on standard AA batteries

🔹 Product Specifications (SPECIFICATION)

• Product Name: M1500 Series (Vertical & Sliding Type)

• Distributor: KAISER PLUS Trading Co.

• Color: Body Black / Window Black

• Type: PIN, RF Card, Fingerprint, Emergency Key

• Applicable Models: M1500GNK, M1192GNK, M1491GNK, M1590GNK, M1593GNK, M1593GNK/R, M1593GNK/L, MS5000FDT

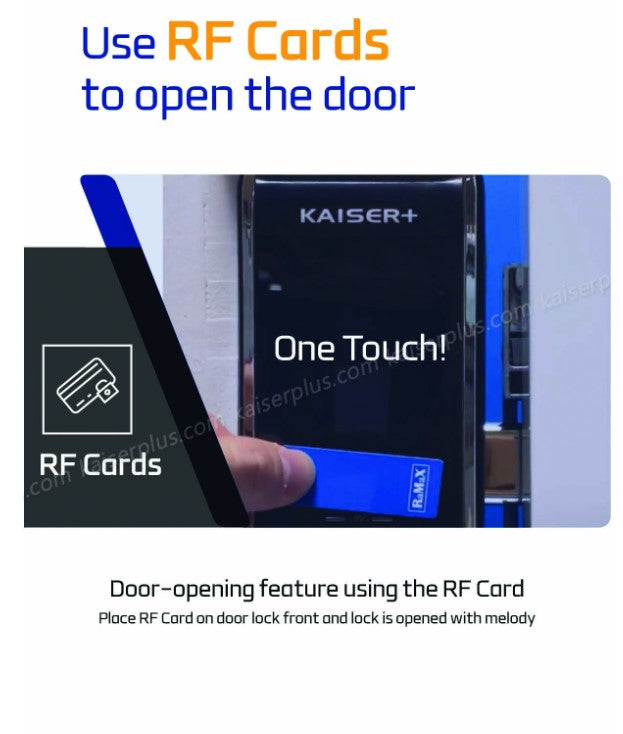

• RF Card Key: Touch authentication function

• Registered RF Cards: Up to 50

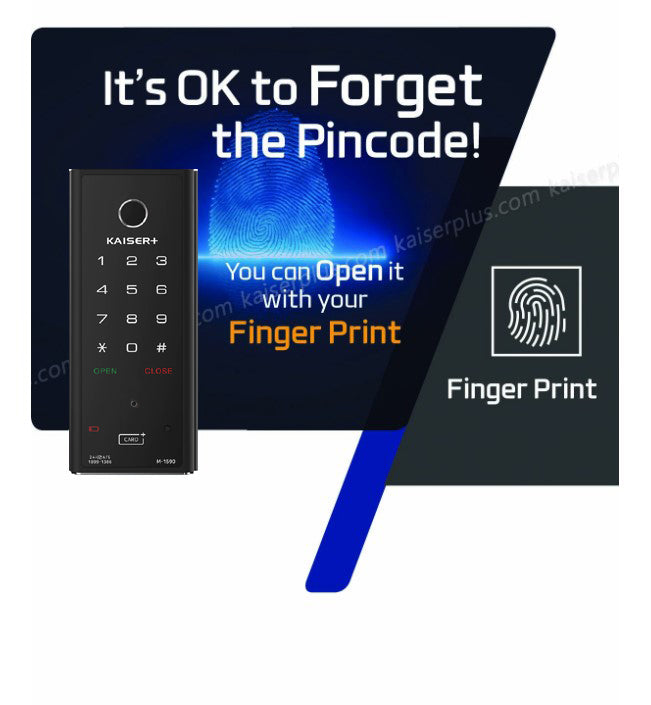

• Fingerprint Capacity: Up to 100

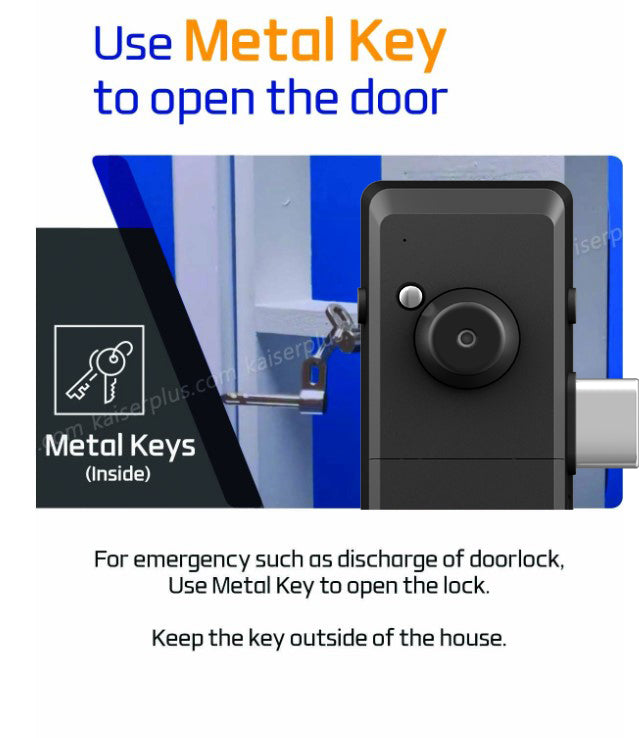

• Metal Emergency Key: Master key option available for bulk orders

• Operating Temperature: -15℃ ~ 55℃

Dimensions (Approx.):

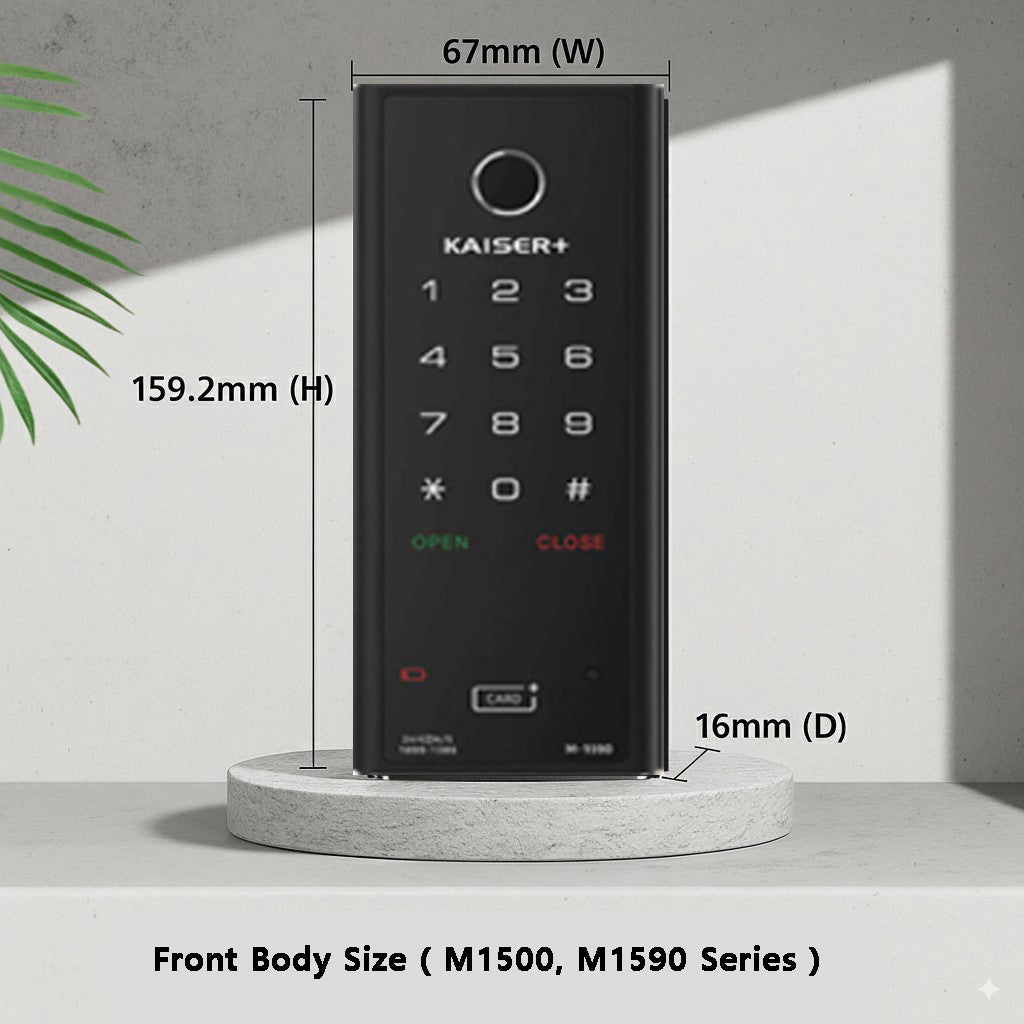

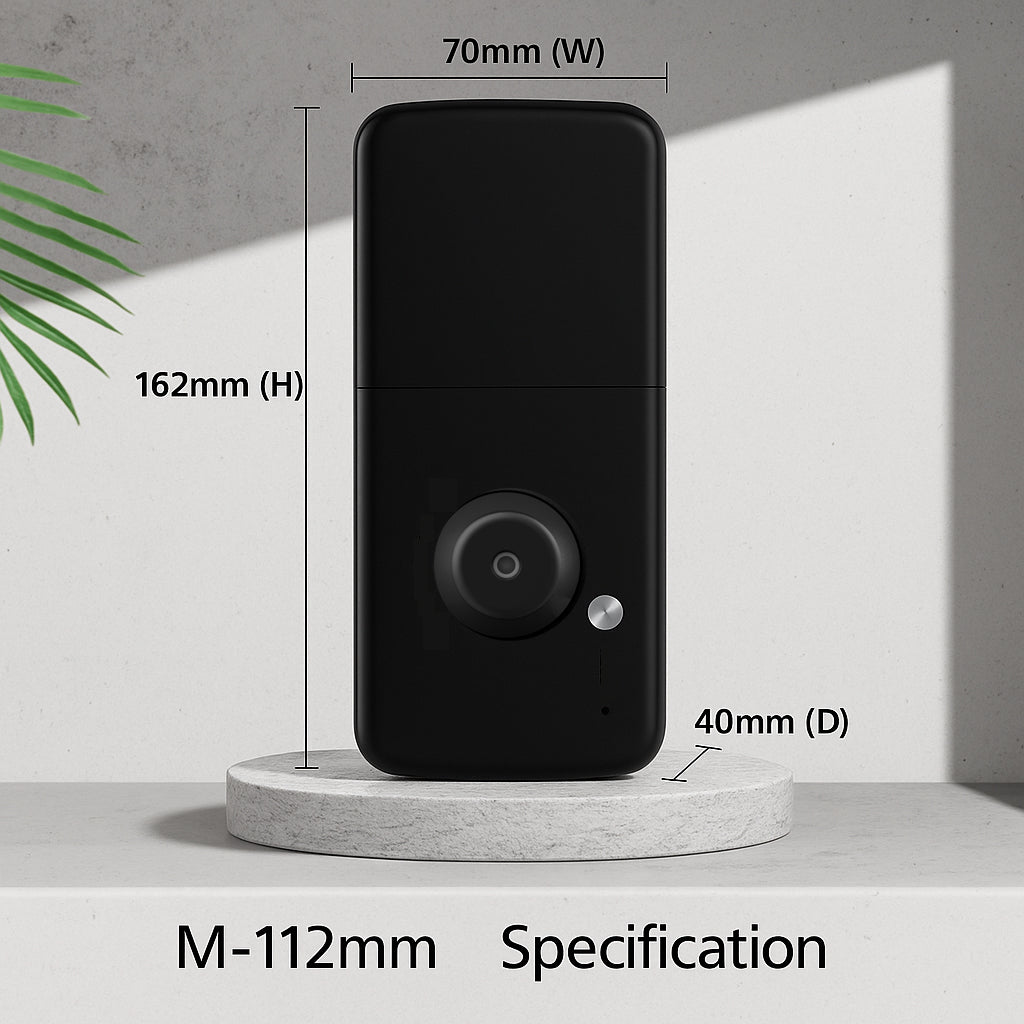

• [KAISER+] Outer Body: 70 × 163 × 18 mm / Inner Body: 70 × 167 × 38 mm

• [MIDAS MS5000] Outer Body: 74 × 176 × 20 mm / Inner Body: 74 × 176 × 38 mm

Material: Flame-retardant ABS, GI (Steel)
Components: Outer Body, Inner Body, Bolt Set, User Manual, Installation Guide, 2 RF Cards
Box Size & Weight: 265 × 212 × 95 mm / 1.1–1.4 kg
Battery: 4 × AA batteries (not included due to flight regulations)

🔹 Model Summary (Final)

📊 Product Lineup Comparison [KAISER+ vs MIDAS]
