📑 Product Information [MIDAS & KAISER+]

🔹 Product Overview

This digital door lock is compatible with both sliding doors and swing doors.
It offers excellent convenience and high-level security.

🔹 Emergency Key Guide

• Use in case of battery depletion or mechanical failure.

• Applicable Models: M1590TKK/R, M1590TKK/L

• Please familiarize yourself with the emergency manual key operation in advance.

• Accessories must be purchased separately from the accessories section.

🔹 KAISER+ Product Lineup

• M1500TNK → PIN, RF Card

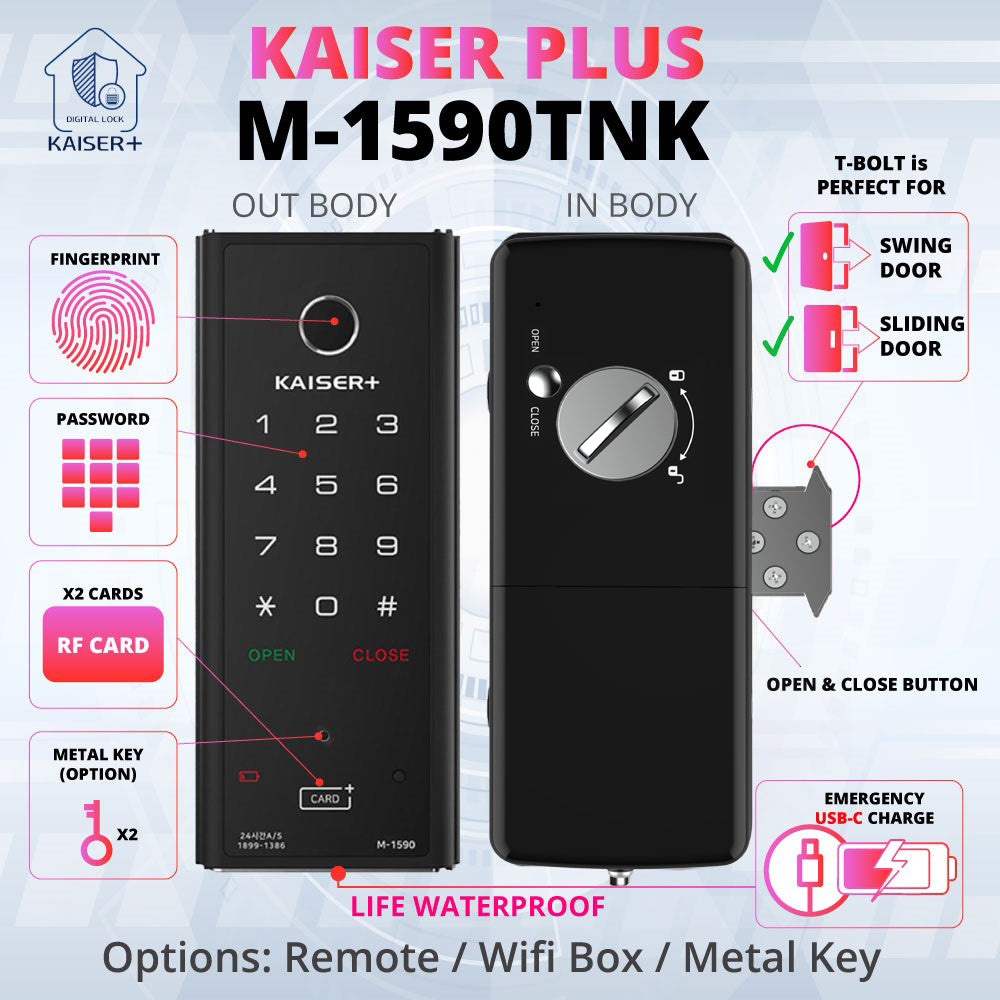

• M1590TNK → PIN, RF Card, Fingerprint

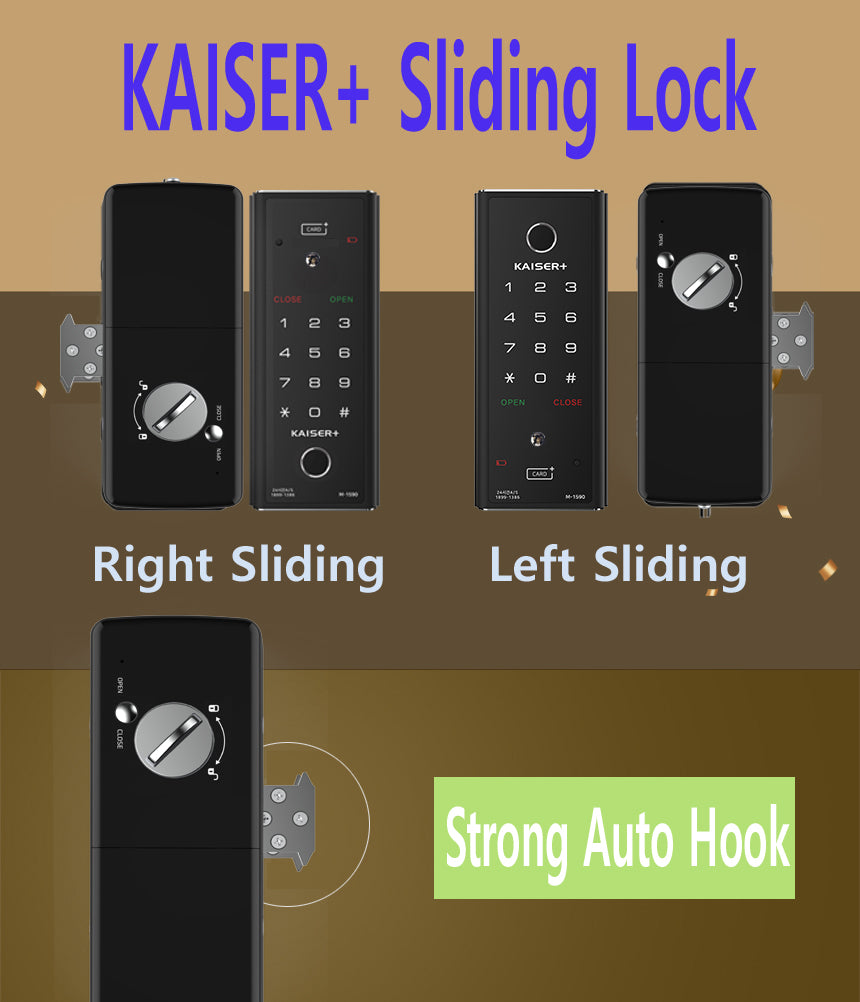

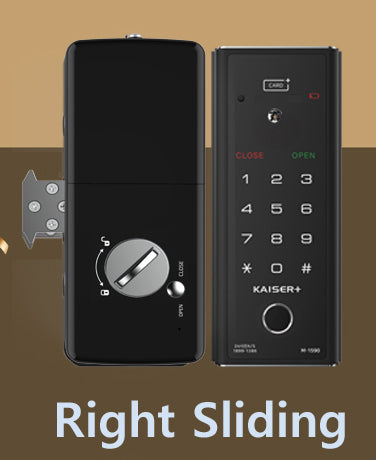

• M1590TKK/R (Right sliding from outside) → PIN, RF Card, Fingerprint, 2 Metal Emergency Keys

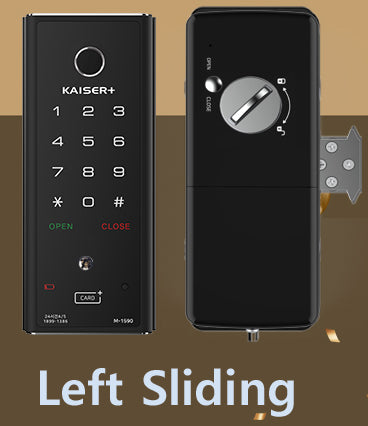

• M1590TKK/L (Left sliding from outside) → PIN, RF Card, Fingerprint, 2 Metal Emergency Keys

🔹 MIDAS Product Lineup

• MS5000FDT → PIN, RF Card, Fingerprint

🔹 BLE & Wi-Fi Shared Options

A. PhonePass+ (Korean App)

1. Remote Control

2. BLE (Bluetooth)

3. BLE + Wi-Fi

B. Ewelink + 433Mhz Remote (Chinese App)

1. Wi-Fi Box

2. 433Mhz Portable Remote

🔹 BLE & Wi-Fi Feature Comparison

1. PhonePass+ (Korean BLE + Wi-Fi)

• High-level security

• Features: Temporary password issuance / Entry log tracking / Smartphone unlocking

2. Ewelink Wi-Fi Box (Chinese App)

• Features: Smartphone unlocking / Multiple 433Mhz car-style remote registration

• For entry log tracking: Add an optional Door Sensor

👉 KAISER+: Supports both Korean & Chinese apps
👉 MIDAS: Supports only the Chinese app

🔹 Remote Control Guide

• Door Lock Remote

  • Indoor: Uses 2 × AAA batteries

  • Portable: Uses a coin battery

• 433Mhz Portable Remote

  • Car remote-style size

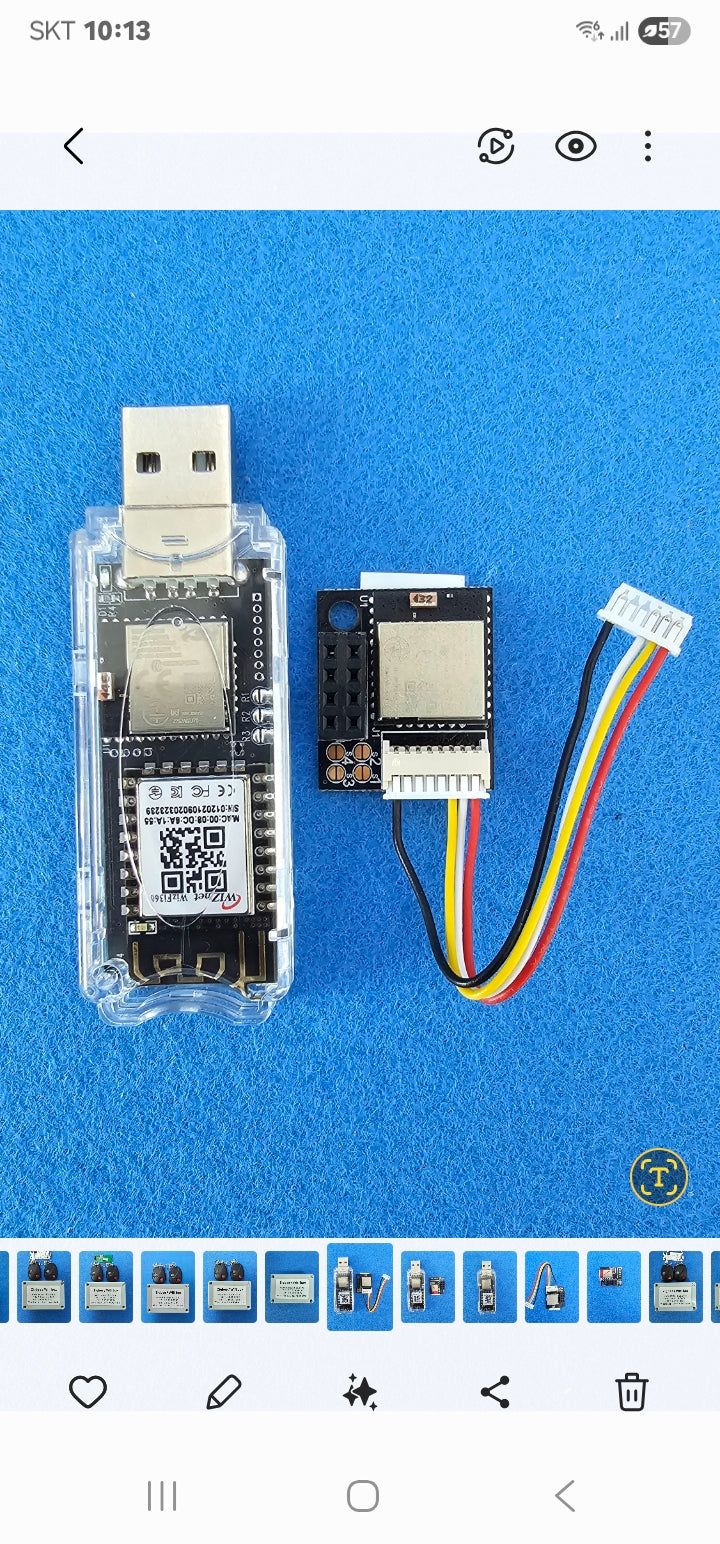

  • Requires Wi-Fi Box power connection

🔹 Built-in Wi-Fi Comparison

• Chinese products: Built-in Wi-Fi → High battery drain, requires rechargeable batteries

• Our products: External USB Wi-Fi Box → Minimal battery drain, powered by AA batteries

🔹 Product Specifications (SPECIFICATION)

• Product Name: M1500 Series (Vertical & Sliding Type)

• Distributor: KAISER PLUS Trading Co.

• Color: Black Body / Black Window

• Type: PIN, RF Card, Fingerprint, Emergency Key

• Applicable Models: M1500TNK, M1590TNK, M1590TKK/R, M1590TKK/L, MS5000FDT

• RF Card Key: Touch authentication

• RF Card Capacity: Up to 50

• Fingerprint Capacity: Up to 100

• Emergency Key: 2 Metal Keys (Master key option available for bulk orders)

• Operating Temperature: –15℃ ~ 55℃

Dimensions (Approx.)

• [KAISER+]

  • Outer Body: 70 × 163 × 18 mm

  • Inner Body: 70 × 167 × 38 mm

• [MIDAS MS5000]

  • Outer Body: 74 × 176 × 20 mm

  • Inner Body: 74 × 176 × 38 mm

Material: Flame-retardant ABS, GI Steel
Components: Outer Body, Inner Body, Bolt Set, User Manual, Installation Guide, 2 RF Cards
Box Size & Weight: 265 × 212 × 95 mm / 1.1–1.4 kg
Battery: 4 × AA batteries (not included due to flight regulations)

🔹 Model Summary (Final)

• ✅ M1500TNK: No Fingerprint / No Emergency Key

• ✅ M1590TNK: Fingerprint ⭕ / Emergency Key ❌

• ✅ M1590TKK/R: Fingerprint ⭕ / Emergency Key ⭕ (Right sliding from outside)

• ✅ M1590TKK/L: Fingerprint ⭕ / Emergency Key ⭕ (Left sliding from outside)

• ✅ MS5000FDT (MIDAS): Fingerprint ⭕ / Emergency Key ❌

🔹 Free Warranty Policy

• Standard: 2-Year Free Warranty

• Within 3 months → Seller covers round-trip shipping, replacement provided

• 3 months ~ 1 year → Customer pays one-way shipping (to Korea), seller covers return shipping after repair

• 1 ~ 2 years → Customer pays round-trip shipping, free repair provided

• Keep the original lock even if a replacement is received, as it will be required during warranty service.

📦 Return & After-Sales (A/S) Policy

1. Before Installation

• Check product contents immediately upon receipt.

• Connect the wires and insert the batteries to test the operation before installation.

• 90% of claims are due to installation issues (wire damage, excessive bending, pin damage).

• If an issue is found, record a video and contact the seller immediately.

2. Return Policy

• Eligible within 30 days of receipt.

• Conditions: Same condition as received / Unused / Tags & packaging intact / Proof of purchase required.

• Procedure: Email kaiserplus.co@gmail.com → Inspection → Refund issued if defect confirmed.

3. Non-Returnable / Notes

• BLE / Wi-Fi

  • Performance may vary depending on the phone or the country's environment.

  • A refund is possible at the customer’s expense, but a BLE/Wi-Fi malfunction is not a valid reason for a full lock return.

• Remote Control

  • Warranty: 3 months free replacement.

  • After 3 months → Replacement available for USD 30.

  • Remote issues cannot justify a full lock return.

4. After-Sales Service (A/S)

• Within 3 months → Seller covers round-trip shipping → Repair or replacement.

• 3 months ~ 1 year → Customer pays outbound shipping → Repair, seller covers return.

• Within 1 year, if the lock cannot be opened, → Replacement provided (except models with emergency key).

• 1 ~ 2 years → Customer pays round-trip shipping → Free repair provided.

• Exclusions: Customer negligence or physical damage (video proof required).
