📑 Product Information [MIDAS & KAISER+] M1590TKK (L/R)

Product Overview

This digital door lock is compatible with both sliding doors and swing doors.

It can also be installed on frame glass doors.

It provides both convenience and high-level security.

Emergency Key Guide

Use in case of battery depletion or mechanical failure.

Applicable models: M1590TKK/R, M1590TKK/L

Please familiarize yourself with the emergency key usage beforehand.

Accessories must be purchased separately in the Accessories section.

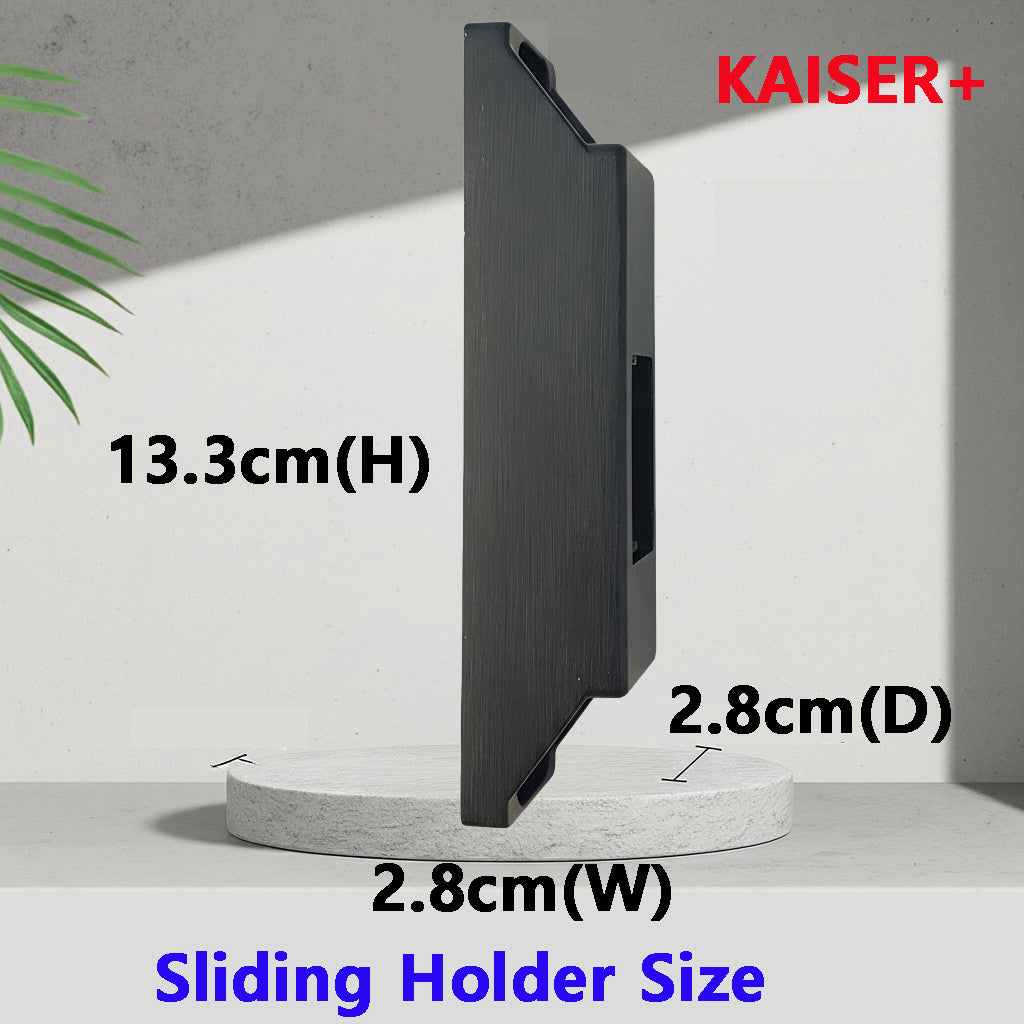

👉 Customers who require the KAISER+ Slim Strike (Slim Holder) should purchase it separately under Accessories.

KAISER+ Product Lineup

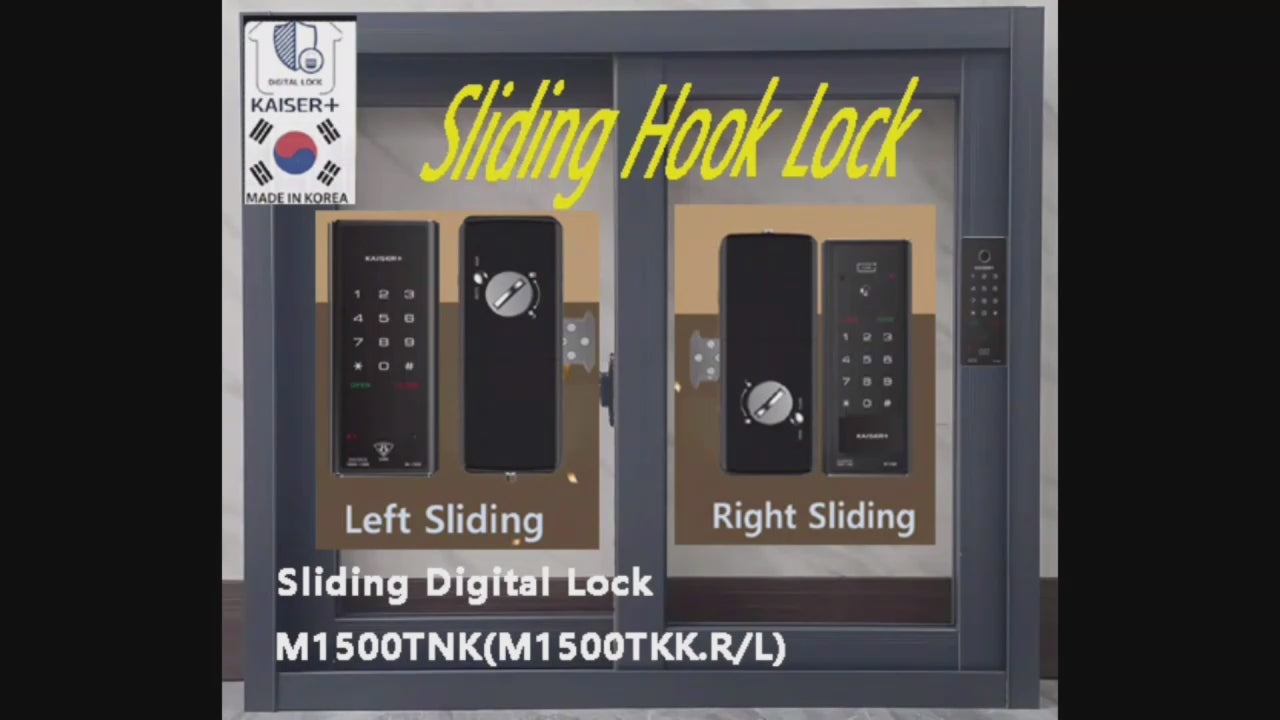

M1500TNK → PIN code, RF Card

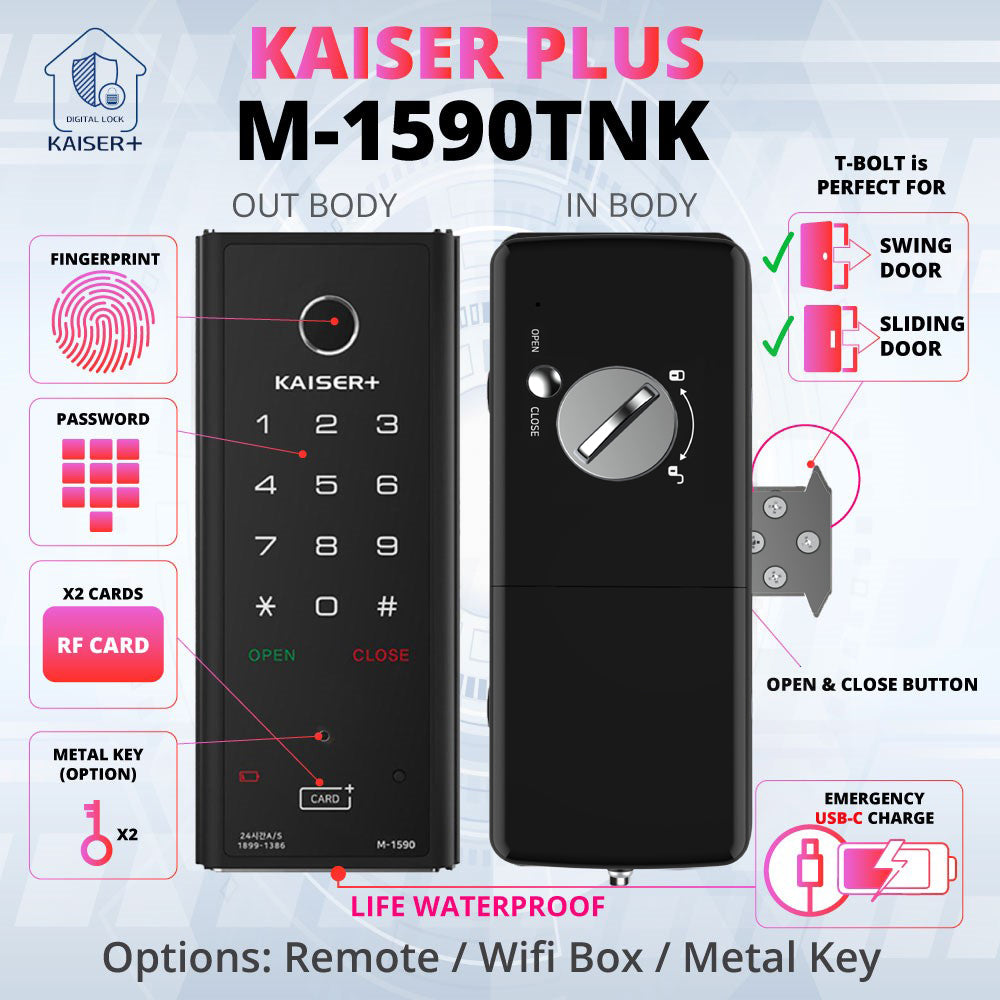

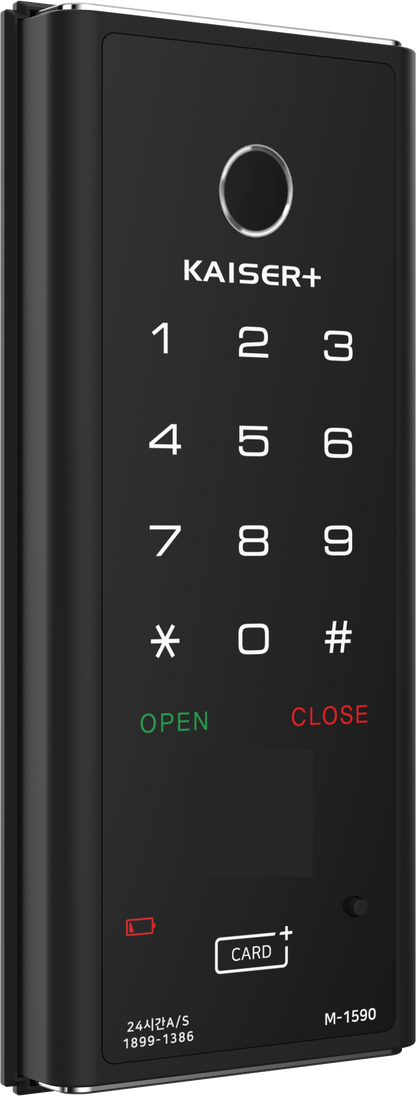

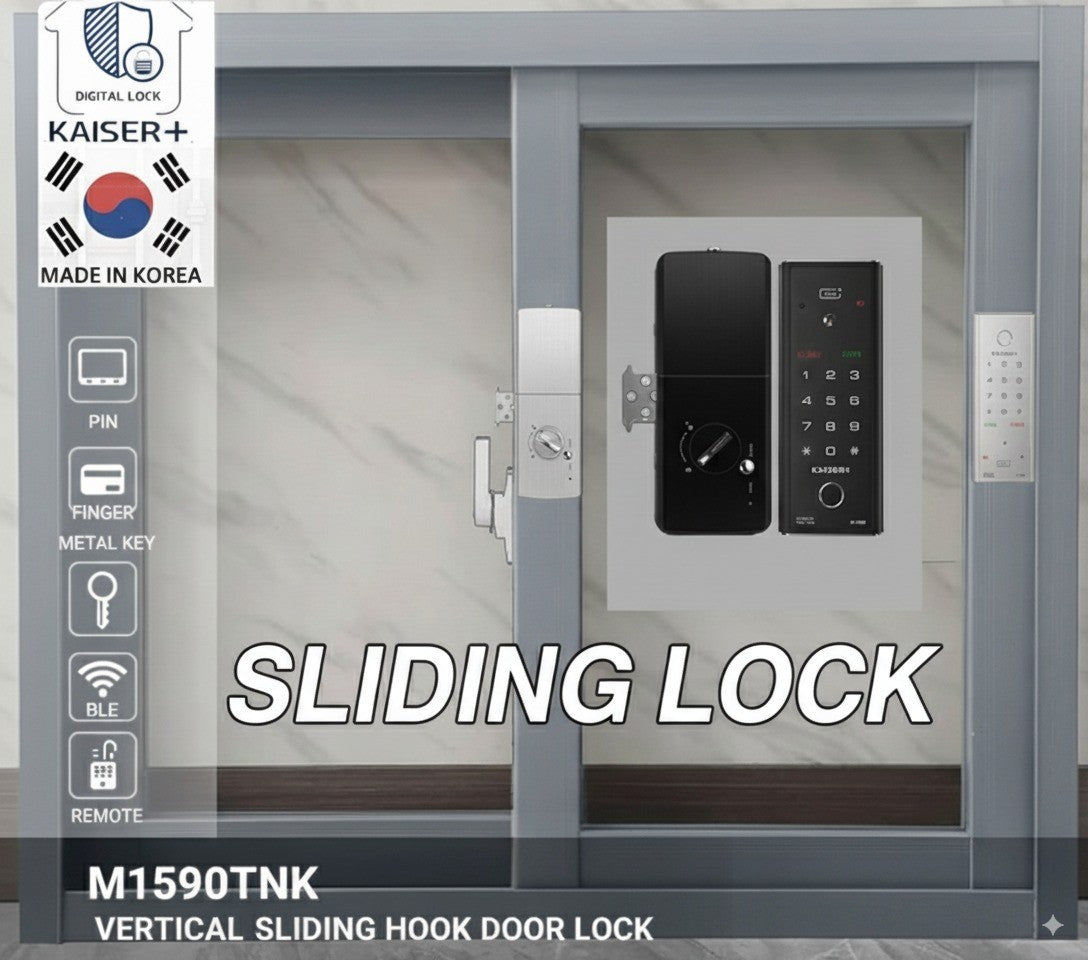

M1590TNK → PIN code, RF Card, Fingerprint

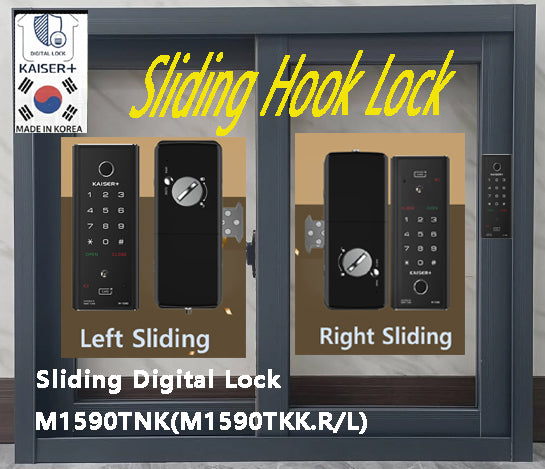

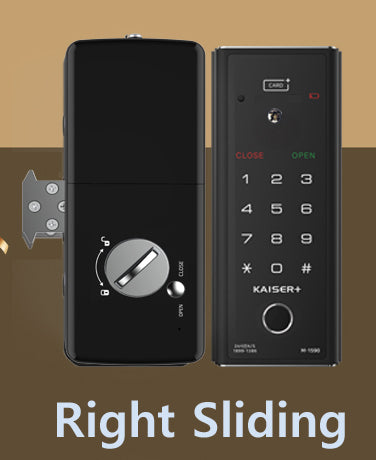

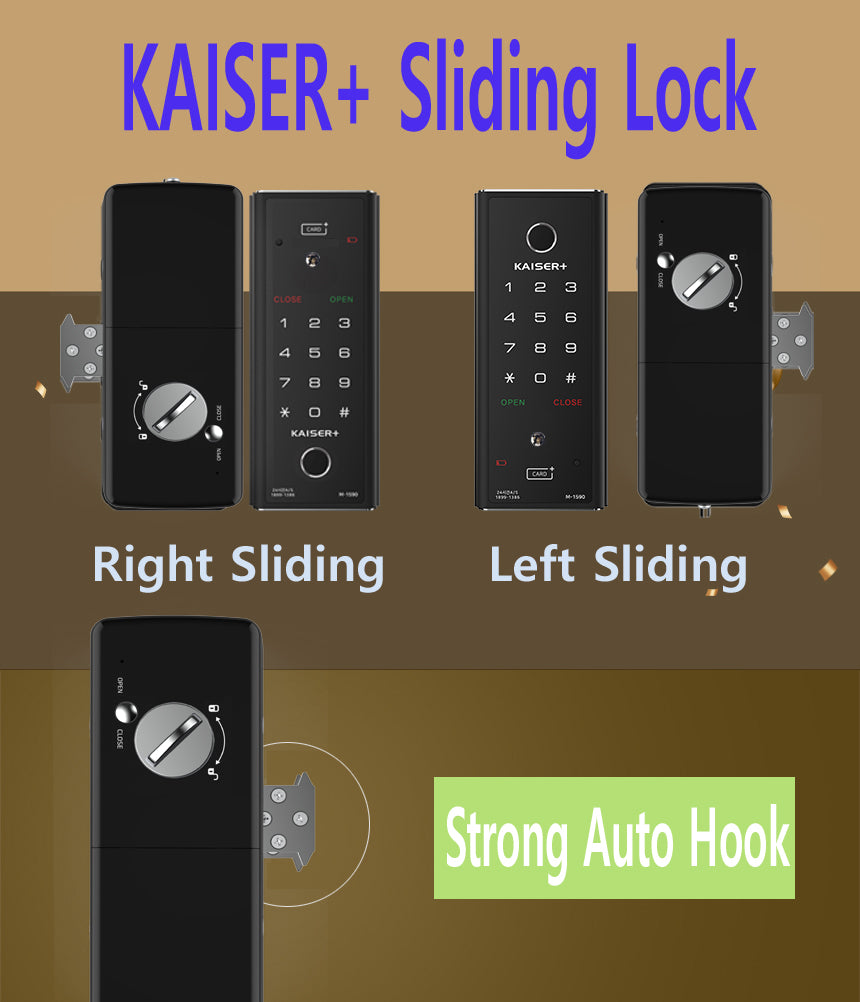

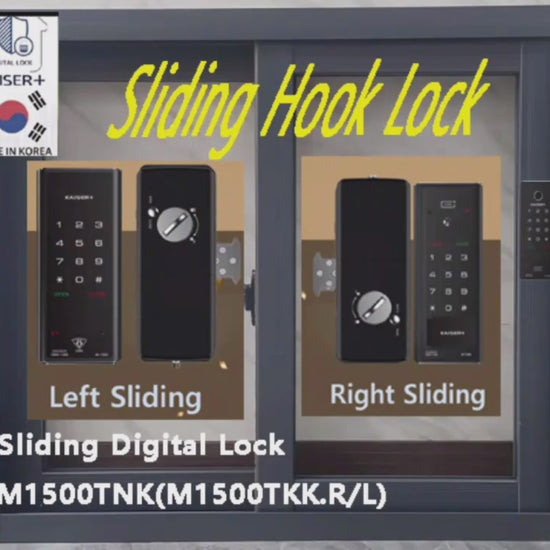

M1590TKK/R (Right sliding from outside) → PIN code, RF Card, Fingerprint, 2 Metal Emergency Keys

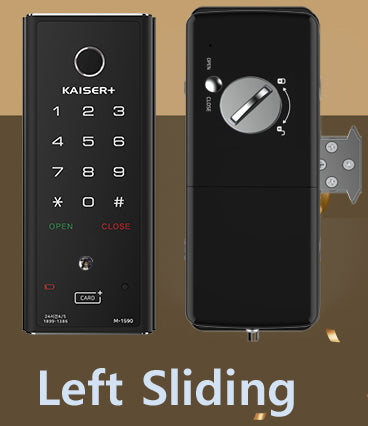

M1590TKK/L (Left sliding from outside) → PIN code, RF Card, Fingerprint, 2 Metal Emergency Keys

MIDAS Product Lineup

MS5000FDT → PIN code, RF Card, Fingerprint

BLE & Wi-Fi Shared Options

A. PhonePass+ (Korean App)

   - Remote Control

   - BLE (Bluetooth)

   - BLE + Wi-Fi

B. Ewelink + 433Mhz Remote (Chinese App)

   - Wi-Fi Box

   - 433Mhz Portable Remote

BLE & Wi-Fi Function Comparison

1. PhonePass+ (Korean BLE + Wi-Fi)

   - Higher security

   - Features: Temporary PIN issuance / Entry log tracking / Smartphone unlocking

2. Ewelink Wi-Fi Box (Chinese App)

   - Features: Smartphone unlocking / Register multiple 433Mhz car-type remotes

   - For entry log tracking → optional door sensor required

👉 KAISER+: Supports both Korean & Chinese apps

👉 MIDAS: Supports only Chinese app

Remote Control Guide

Door Lock Remote

   - Indoor use: Powered by 2 × AAA batteries

   - Portable: Coin cell battery

433Mhz Portable Remote

   - Car-style size

   - Requires Wi-Fi Box power connection

Built-in Wi-Fi Comparison

Chinese Products: Built-in Wi-Fi → high battery consumption, requires rechargeable battery

Our Products: External USB Wi-Fi Box → minimal battery consumption, powered by AA batteries

Product Specifications

Product Name: M1500 Series (Vertical & Sliding Type)

Distributor: KAISER PLUS Trading Co.

Color: Black body / Black window

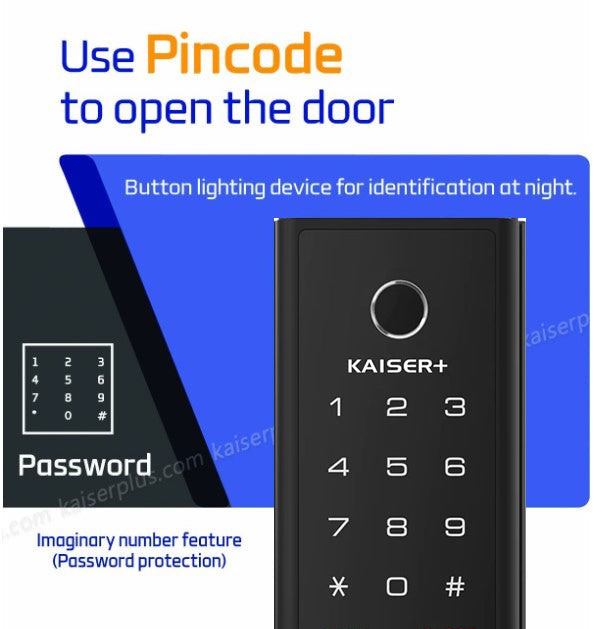

Type: PIN, RF Card, Fingerprint, Emergency Key

Applicable Models: M1500TNK, M1590TNK, M1590TKK/R, M1590TKK/L, MS5000FDT

RF Card Key: Touch authentication

RF Card Registration: Up to 50 cards

Fingerprint Registration: Up to 100 users

Emergency Key: 2 Metal Keys (Master key option available for bulk orders)

Operating Temperature: –15℃ to 55℃

Dimensions (± tolerance)

[KAISER+] Outer Body: 70 × 163 × 18 mm / Inner Body: 70 × 167 × 38 mm

[MIDAS MS5000] Outer Body: 74 × 176 × 20 mm / Inner Body: 74 × 176 × 38 mm

Material: Flame-retardant ABS, GI Steel

Package Contents: Outer Body, Inner Body, Bolt Set, User Manual, Installation Guide, 2 RF Cards

Box Size & Weight: 265 × 212 × 95 mm / 1.1–1.4 kg

Battery: 4 × AA batteries (not included due to air shipment regulations)

💡 Battery Life Guide

   - Varies depending on usage (opening frequency, remote control, Wi-Fi, sync with main door lock, humidity, temperature, battery type)

   - If depleted within 2 months → rechargeable batteries recommended

   - Latest door locks consume more power due to enhanced performance

Model Summary (Final)

✅ M1500TNK: No Fingerprint / No Emergency Key

✅ M1590TNK: Fingerprint ⭕ / No Emergency Key

✅ M1590TKK/R: Fingerprint ⭕ / Emergency Key ⭕ (Right Sliding)

✅ M1590TKK/L: Fingerprint ⭕ / Emergency Key ⭕ (Left Sliding)

✅ MS5000FDT (MIDAS): Fingerprint ⭕ / No Emergency Key
