[HDB Gate Lock] MIDAS & KAISER+ Product Guide
This product is a digital door lock designed for installation on HDB Gate Doors in tropical regions.
Applications: HDB Gate Door, Protection of the Intellectually Disabled, Nursing Homes, Detention Centers, Juvenile Facilities, Prisons, Jails, Dementia Care
________________________________________
🔹 KAISER+ Product Lineup (For HDB Gate Locks)
Common Feature: Built-in Metal Emergency Key
Shared Options: Remote Control, Wi-Fi Box, BLE + Wi-Fi

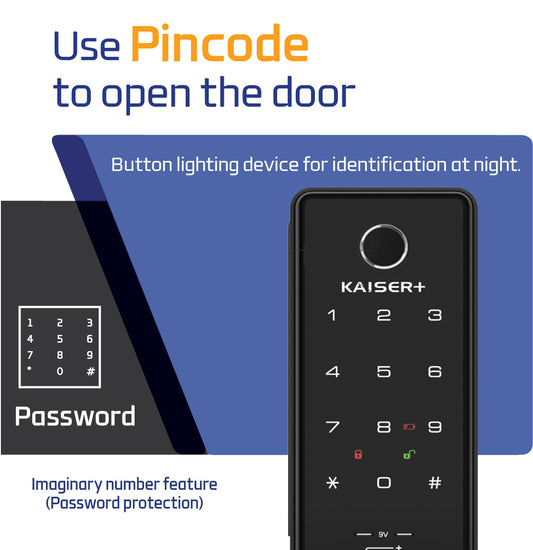

• M1500GNK → PIN, RF Card
• M1192GNK → PIN, RF Card, Fingerprint
• M1491GNK → PIN, RF Card, Fingerprint
• M1590GNK → PIN, RF Card, Fingerprint
• M1593GNK → PIN, RF Card, Fingerprint, Dual In-body Fingerprint, SYNC Module

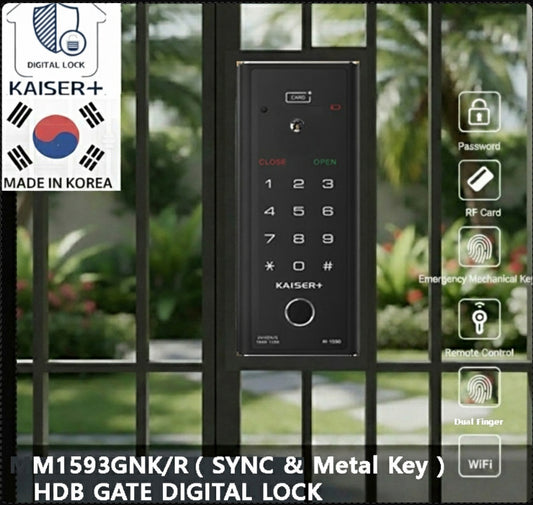

• M1593GNK/R (Right-sliding type, based on outside) → PIN, RF Card, Fingerprint, Dual In-body Fingerprint, SYNC Module, Outer-body Emergency Key
• M1593GNK/L (Left-sliding type, based on outside) → PIN, RF Card, Fingerprint, Dual In-body Fingerprint, SYNC Module, 2 Outer-body Emergency Keys
🔹 Important Notes for KAISER+ Products!
• After installation, always check if the in-body emergency key works properly!
• This is a life-saving emergency key.
• In normal households, keep the remote control together with the emergency key behind the main door.
• These options can be used when leaving the house: Remote control, Bluetooth, Wi-Fi, Wi-Fi Box (with 433Mhz remote), Dual Fingerprint, Manual Emergency Key
________________________________________
🔹 MIDAS Product Lineup
• MS5000FDG → PIN, RF Card, Fingerprint, In-body Metal Key, Dual Fingerprint, SYNC
• MS5000FTG → PIN, RF Card, Fingerprint, In-body Metal Key, Dual Fingerprint, SYNC, Smart Home App
________________________________________
SYNC Function: When the Main Gate Lock is opened, the Main Door Lock opens simultaneously.
🔹 Model Summary (Final Comparison Table)
Brand / Model PIN RF Card Fingerprint Dual Fingerprint In-body Key Outer-body Key SYNC Module App Support
KAISER+ M1500GNK ⭕ ⭕ ❌ ❌ ⭕ ❌ ❌ PhonePass+ / Ewelink
KAISER+ M1192GNK ⭕ ⭕ ⭕ ❌ ⭕ ❌ ❌ PhonePass+ / Ewelink
KAISER+ M1491GNK ⭕ ⭕ ⭕ ❌ ⭕ ❌ ❌ PhonePass+ / Ewelink
KAISER+ M1590GNK ⭕ ⭕ ⭕ ❌ ⭕ ❌ ❌ Ewelink Only
KAISER+ M1593GNK ⭕ ⭕ ⭕ ⭕ ⭕ ❌ ⭕ Ewelink Only
KAISER+ M1593GNK/R ⭕ ⭕ ⭕ ⭕ ⭕ ⭕ ⭕ Ewelink Only
KAISER+ M1593GNK/L ⭕ ⭕ ⭕ ⭕ ⭕ ⭕ ⭕ Ewelink Only
MIDAS MS5000FDG ⭕ ⭕ ⭕ ⭕ ⭕ ❌ ⭕ Ewelink Only
MIDAS MS5000FTG ⭕ ⭕ ⭕ ⭕ ⭕ ❌ ⭕ Smart Home / Ewelink
________________________________________

🔹 BLE & Wi-Fi Integration Options
________________________________________
🔹 BLE & Wi-Fi Feature Comparison
PhonePass+ (Korean BLE + Wi-Fi)
• Supported Models: M1192GNK, M1491GNK
• Not Supported: M1590GNK, M1593GNK, M1593GNK/R, M1593GNK/L
• Options: BLE (Bluetooth), BLE + Wi-Fi
• Superior security
• Functions: Temporary password issuance / Entry log check / Smartphone unlocking

B. Ewelink + 433Mhz Remote (Chinese App)
• Supported on all KAISER+ & MIDAS models
• Options: Wi-Fi Box, 433Mhz Portable Remote
• Functions: Smartphone unlocking / Multiple 433Mhz car-style remote registrations
• For entry log tracking → Separate door sensor required
________________________________________
🔹 Remote Control Guide
• Door Lock Remote (Indoor): Uses 2 × AAA batteries
• Portable Remote: Uses coin battery
• 433Mhz Portable Remote: Car key size, requires Wi-Fi Box power connection
________________________________________
🔹 Product Specifications (SPECIFICATION)
• Product Name: M1500 & M1590 & MIDAS Series (Vertical & Sliding Type)
• Distributor: KAISER PLUS Trading Co.
• Color: Body Black / Window Black
• Type: PIN, RF Card, Fingerprint, Emergency Key
• Applicable Models: M1500GNK, M1192GNK, M1491GNK, M1590GNK, M1593GNK, M1593GNK/R, M1593GNK/L, MS5000FDT
• RF Card Key: Touch authentication function
• Registered RF Cards: Up to 50
• Fingerprint Capacity: Up to 100
• Metal Emergency Key: Master key option available for bulk orders
• Operating Temperature: -15℃ ~ 55℃
• Dimensions (Approx.):
   [KAISER+] Outer Body: 70 × 163 × 18 mm / Inner Body: 70 × 167 × 38 mm
   [MIDAS MS5000] Outer Body: 74 × 176 × 20 mm / Inner Body: 74 × 176 × 38 mm
• Material: Flame-retardant ABS, GI (Steel)
• Components: Outer Body, Inner Body, Bolt Set, User Manual, Installation Guide, 2 RF Cards
• Box Size & Weight: 265 × 212 × 95 mm / 1.1–1.4 kg
• Battery: 4 × AA batteries (not included due to flight regulations)

📦 Return & After-Sales (A/S) Policy
Before Installation
• Check the contents immediately upon receipt
• Insert batteries and test operation before installation
• 90% of customer claims occur due to installation issues (wire damage, bending, connector pin damage, etc.)
• If any problem is found, record a video and contact the seller immediately

Return Policy
• Eligible within 30 days of receipt
• Conditions: Same condition as received / Unused / Tags & packaging intact / Proof of purchase required
• Procedure: Email kaiserplus.co@gmail.com → Inspection → Refund if defect confirmed

Non-returnable / Notes
• BLE / Wi-Fi recognition may vary depending on country/phone environment → Refund possible at customer’s expense
• BLE/Wi-Fi malfunction alone cannot justify a full lock return
• Remote Control: Considered consumable, 3-month free warranty / After 3 months, replacement available for USD 30
• Remote issues alone cannot justify full lock return

After-Sales Service
• Original lock must be kept to ensure warranty availability
• In Singapore, obtain an A/S warranty certificate from our partner company upon installation
• Within 3 months → Free service
• 3 months ~ 1 year → On-site repair service fee (SGD 60) applies
• Within 1 year, if the lock cannot be opened → Replacement provided (except models with emergency key)
• 1 ~ 2 years → Customer pays round-trip shipping, free repair provided
• Exclusions: Customer negligence or physical damage (video proof required)
